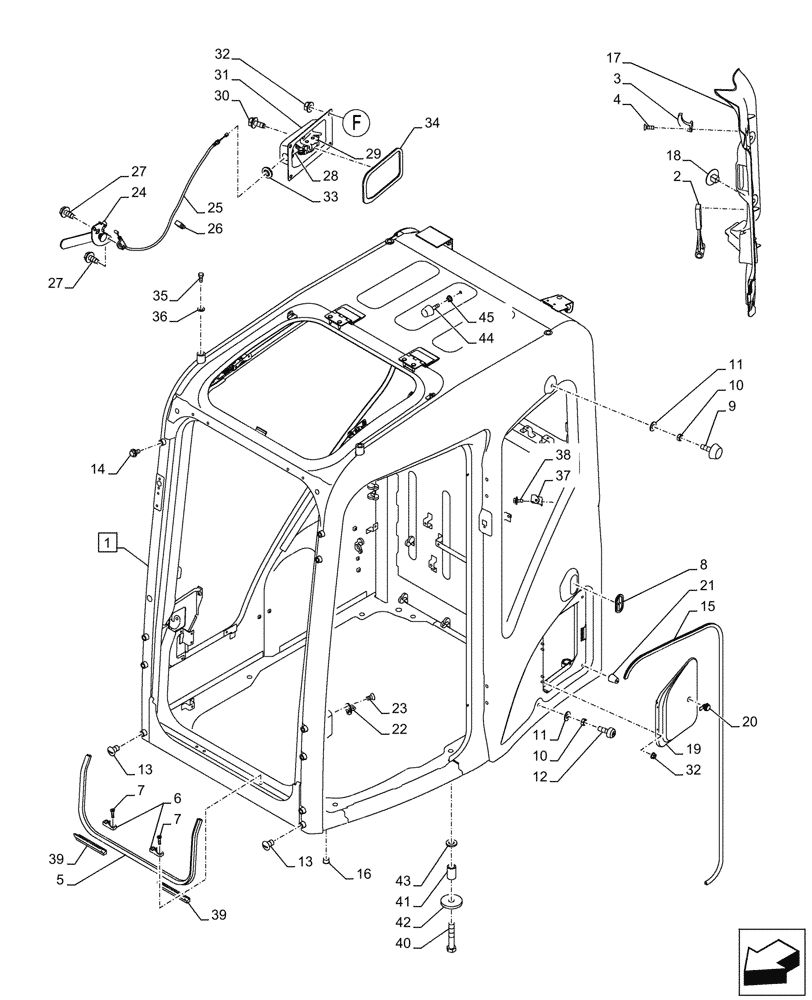

Запчасти Case CX245D (90.150.010) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN47480

CAB

ASSY, Incl 2 - 45

1шт.

See also Figure 55.512.030, 90.156.010, 90.156.020, 90.154.010, 90.151.020, 90.118.010, 90.160.070

1шт.

2

KHN25950

HAMMER

1шт.

3

KHN30340

HOOK

1шт.

4

KHN30350

SCREW

M4 x 12mm

2шт.

5

KHN30680

STRIP

1шт.

6

KHN3053

SPACER

2шт.

7

KHN30700

SCREW

M5 x 2mm

4шт.

8

152401A1

GROMMET

1шт.

9

KAN2751

STOP

1шт.

10

KAN2636

NUT

2шт.

11

KAN2778

WASHER

2шт.

12

KHN31190

STOP

1шт.

13

KHN31200

CAP

6шт.

14

KHN31220

BOLT

M8 x 12mm

4шт.

15

KHN31230

DOOR SEAL

1шт.

16

KHN31260

CAP

4шт.

17

KHN31530

TRIM

1шт.

18

KHN31560

CLIP

4шт.

19

KHN31620

COVER

1шт.

20

KHN31630

LOCK CYLINDER

1шт.

21

KHN31640

STOP

2шт.

22

KHN31850

STRIKER

1шт.

23

KHN31860

BOLT

2шт.

24

KHN31880

LEVER

1шт.

25

KHN31890

CABLE

1шт.

26

152489A1

CLAMP

1шт.

27

KAN2641

SCREW,Spcl

M6 x 16mm

2шт.

28

152508A1

CLAMP

1шт.

29

KHN31900

CATCH PLATE

1шт.

30

KHN30390

BOLT

M6 x 16mm

2шт.

31

KHN31920

COVER

1шт.

32

KAN2629

SPECIAL NUT

8шт.

33

KHN19390

GROMMET

1шт.

34

KHN31930

SEAL

1шт.

35

KHN34000

BOLT

M16 x 25mm

4шт.

36

KHN34010

WASHER

4шт.

37

KHN34700

BRACKET

1шт.

38

KHN31510

BOLT

M 6 x 16mm

1шт.

39

KHN48200

STRIP

2шт.

40

102R024Y130R

BOLT

M24 x 13mm

1шт.

41

KHN20900

SPACER

1шт.

42

KHN20910

WASHER

1шт.

43

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

1шт.

44

KHN30570

STOP

1шт.

45

KHN30580

NUT

1шт.
