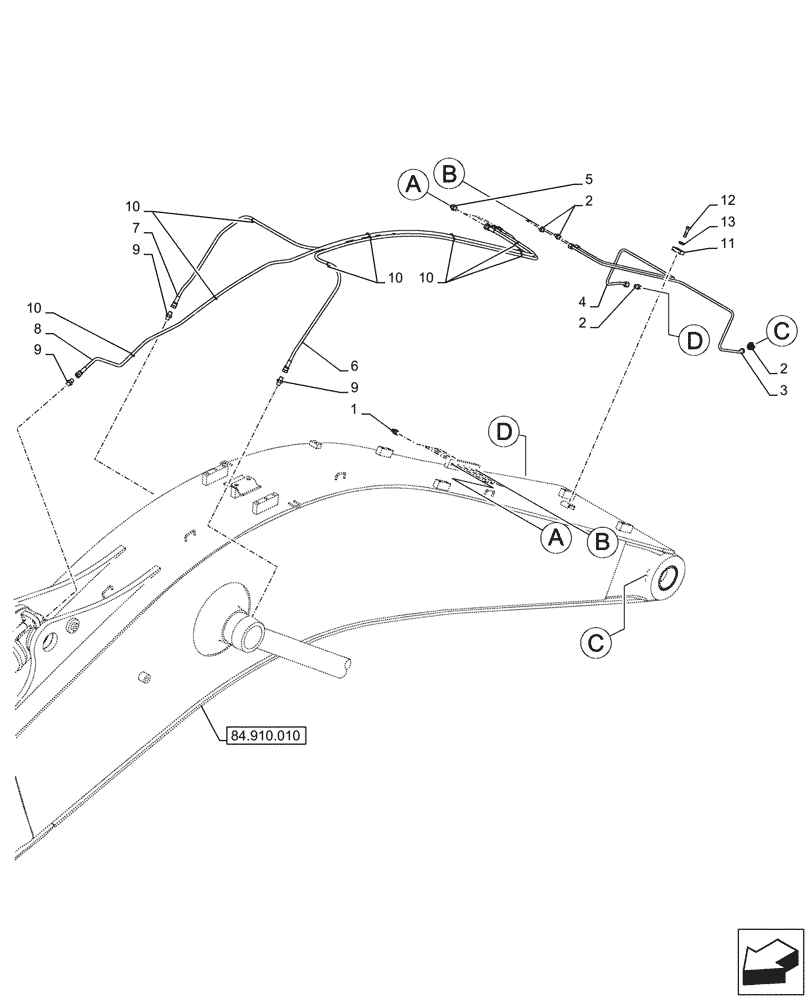

Запчасти Case CX245D (71.460.010) - LUBRICATION LINE (71) - LUBRICATION SYSTEM

1

153630A1

LUBE NIPPLE

5шт.

2

152599A1

MULTIPOLE CONNECTOR

4шт.

3

KRV45480

PIPE

1шт.

4

KRV45490

PIPE

1шт.

5

KRJ4050

ADAPTER

3шт.

6

KHJ20480

HYDRAULIC HOSE

6mm ID x 2350mm

1шт.

7

KHJ2071

HOSE

6mm ID x 2450mm

1шт.

8

KHJ2079

HOSE

6mm ID x 3000mm

1шт.

9

153603A1

ADAPTER

3шт.

10

150067A1

MOUNTING CLIP

150mm

8шт.

11

KUV10450

CLAMP

1шт.

12

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

M8 x 30mm

1шт.

13

153081A1

WASHER

1шт.
