(55.988.010) - DEF/ADBLUE™ TANK, LEVEL, SENSOR

Запчасти Case CX245D (55.988.010) - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS

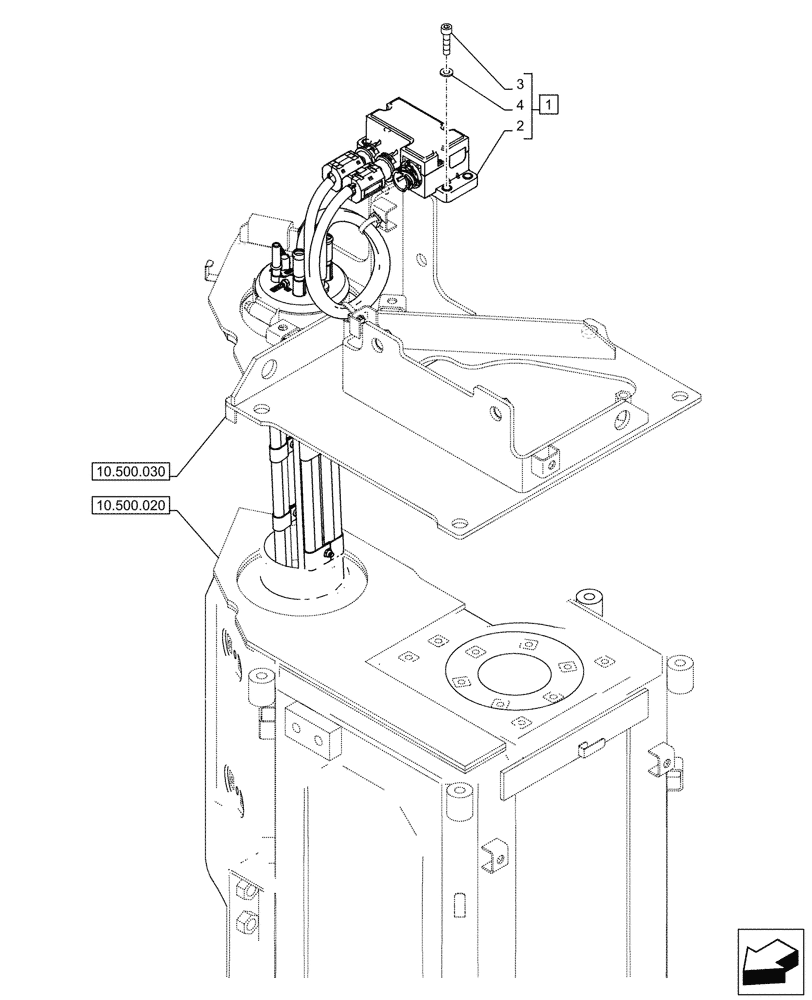

Схема запчастей Case CX245D - (55.988.010) - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS
10.500.030
1
3
4
2
10.500.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRH21061

TANK

ASSY, Incl 2 - 4

1шт.

See also Figure 10.500.010, 10.500.020, 10.500.030

1шт.

2

KRH20910

SENSOR

Urea Sensor

1шт.

3

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

4шт.

4

183-106VR

SPRING WASHER

4шт.
