(55.530.040) - VAR - 488055 - REAR VIEW CAMERA, SIDE CAMERA, CONTROLLER

Запчасти Case CX245D (55.530.040) - VAR - 488055 - REAR VIEW CAMERA, SIDE CAMERA, CONTROLLER (55) - ELECTRICAL SYSTEMS

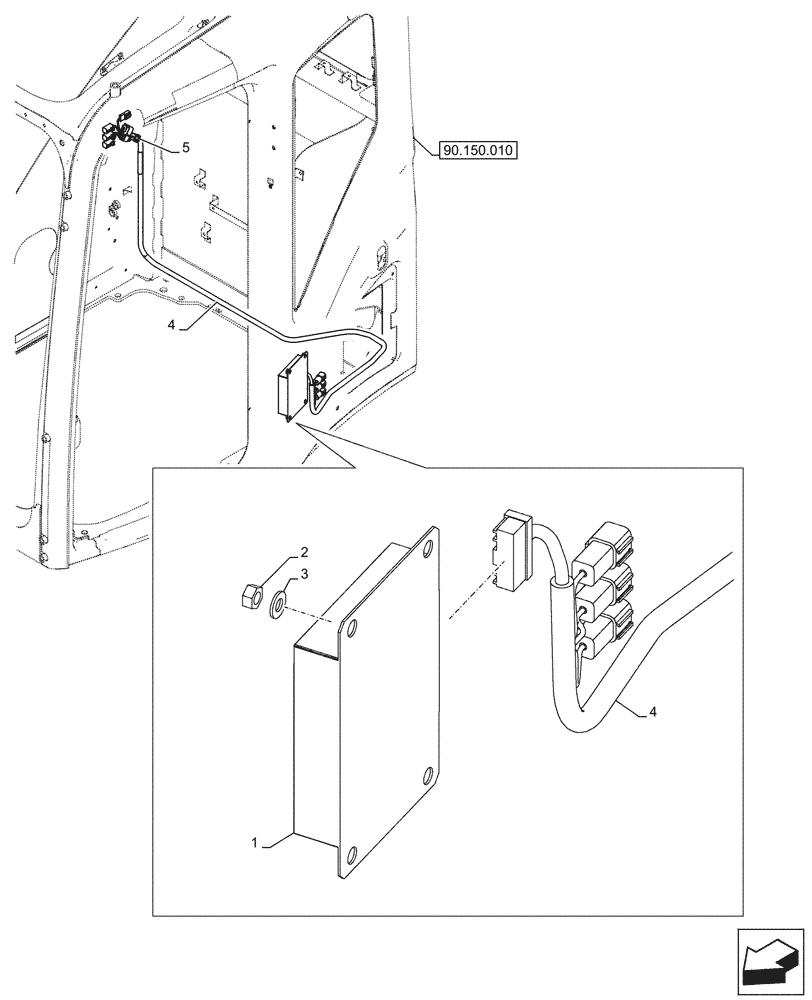

Схема запчастей Case CX245D - (55.530.040) - VAR - 488055 - REAR VIEW CAMERA, SIDE CAMERA, CONTROLLER (55) - ELECTRICAL SYSTEMS
90.150.010
3
4
5
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR42502

CONTROLLER

, Start Serial: D0560

1шт.

2

162R008SR

SPRING WASHER

M8

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

KHR46000

WIRE HARNESS

1шт.

5

150496A1

MOUNTING CLIP

250mm

1шт.
