Запчасти Case CX245D (55.510.060) - VAR - 461865, 461869, 461871 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

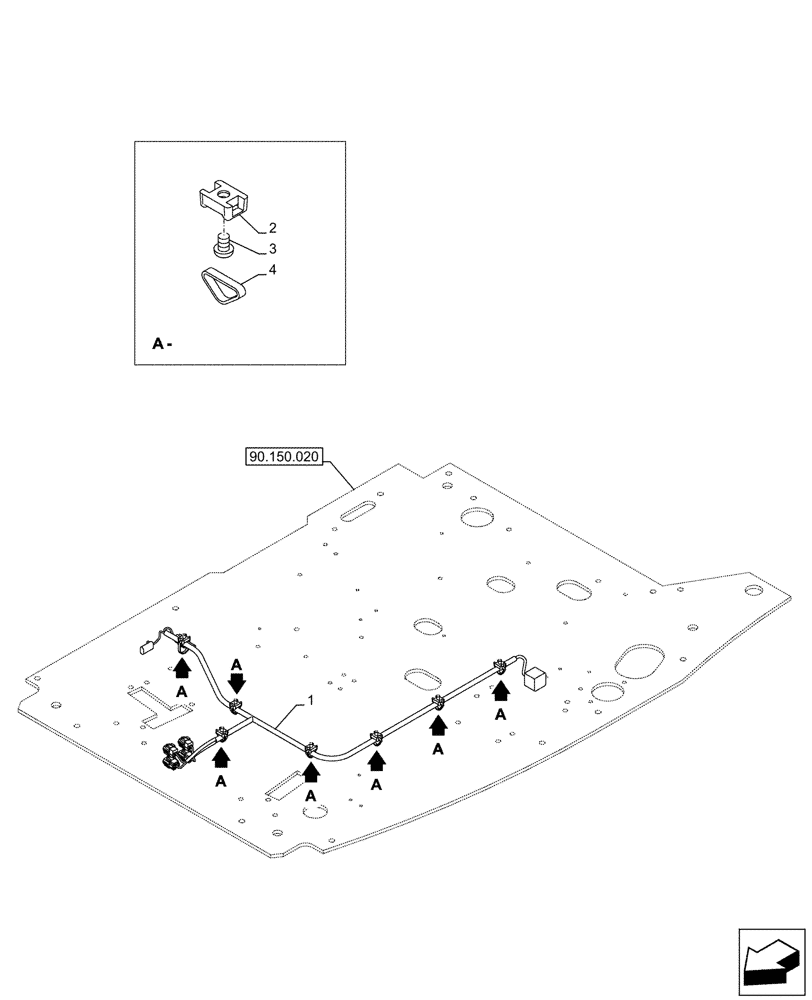

Схема запчастей Case CX245D - (55.510.060) - VAR - 461865, 461869, 461871 - OPTION, HARNESS, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
90.150.020
4
1
2
3

Артикул

Название

Примечание

Количество

1

KHR46190

WIRE HARNESS

1шт.

2

150860A1

COLLAR

7шт.

3

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

7шт.

4

150496A1

MOUNTING CLIP

250mm

7шт.

Выбрано товаров: 4
