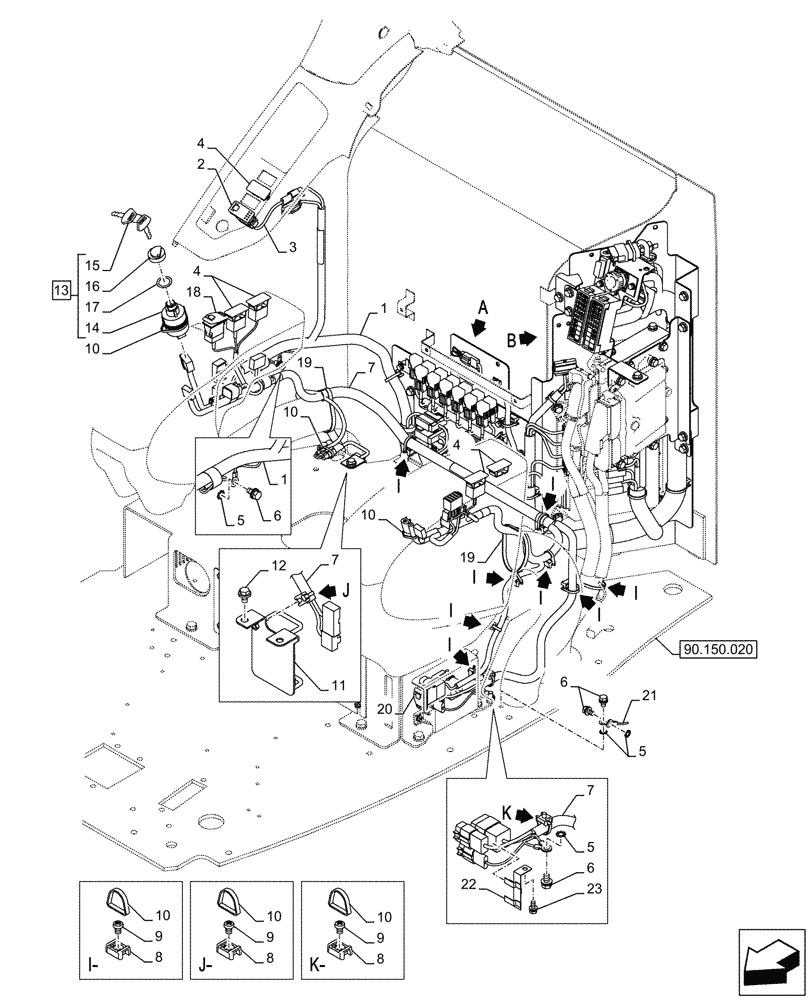

Запчасти Case CX245D (55.510.020) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KHR45722

WIRE HARNESS

1шт.

See also Figure 55.510.030

1шт.

2

KHR28540

SWITCH

1шт.

3

KHR46530

WIRE HARNESS

1шт.

4

KHR10390

CAP

5шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

4шт.

6

167518A1

BOLT

M8 x 16mm

4шт.

7

KHR46041

WIRE HARNESS

1шт.

8

150860A1

COLLAR

10шт.

9

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10шт.

10

150496A1

MOUNTING CLIP

250mm

13шт.

11

KHR50430

BRACKET

1шт.

12

166345A1

BOLT

M8 x 16mm

2шт.

13

KHR20050

IGNITION SWITCH

ASSY, Incl 14 - 17

1шт.

14

KHR3078

IGNITION SWITCH

1шт.

15

KHR20070

IGNITION KEY

1шт.

16

KHR3080

CAP

1шт.

17

KHR3081

WASHER

1шт.

18

KHR15850

ROCKER SWITCH

1шт.

19

150071A1

MOUNTING CLIP

380mm

2шт.

20

KHR28530

SWITCH

1шт.

21

KHR11240

GROUND CABLE

1шт.

22

KHR50450

BRACKET

1шт.

23

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.
