(55.425.050) - VAR - 461869 - PRESSURE SENSOR, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX245D (55.425.050) - VAR - 461869 - PRESSURE SENSOR, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

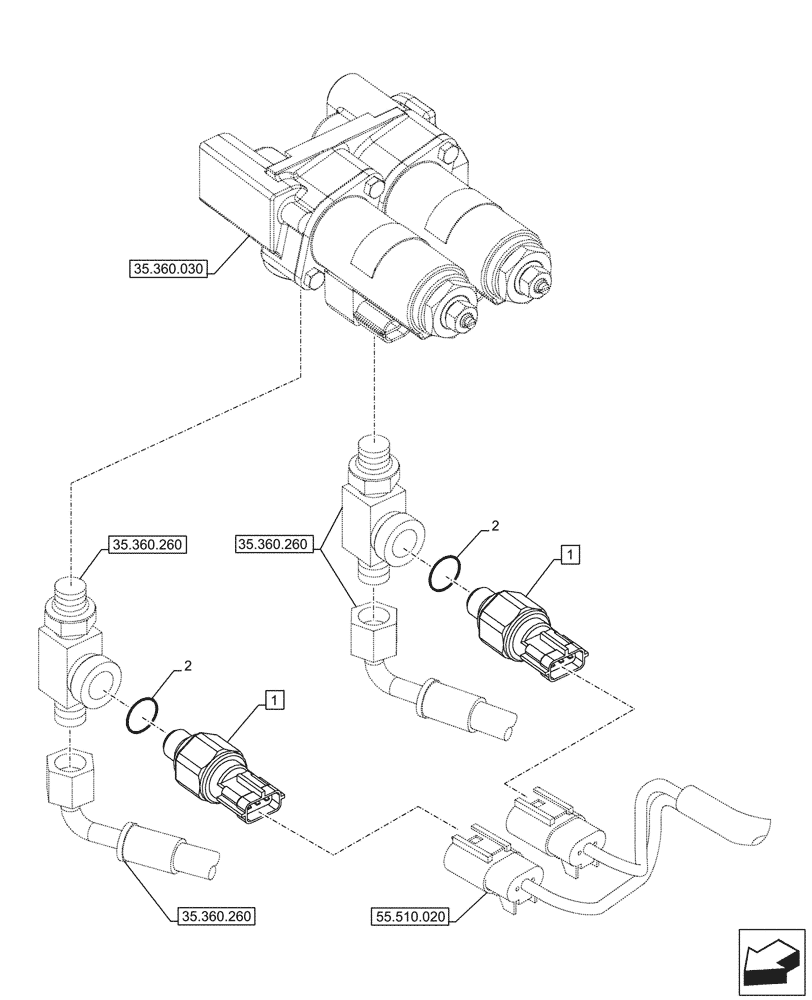

Схема запчастей Case CX245D - (55.425.050) - VAR - 461869 - PRESSURE SENSOR, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
55.510.020
1
2
2
1
35.360.030
35.360.260
35.360.260
35.360.260
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY, 5MPa x G1/4", Incl 2

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

Выбрано товаров: 2
