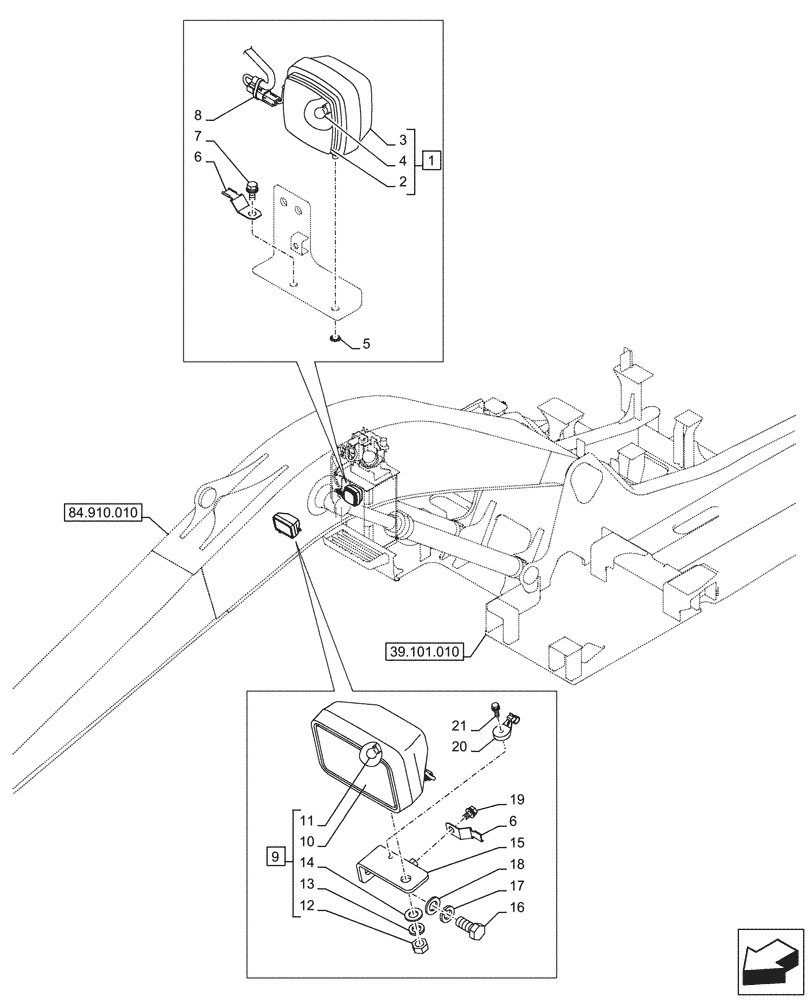

Запчасти Case CX245D (55.404.020) - VAR - 488134 - WORKING LIGHT, BOOM (55) - ELECTRICAL SYSTEMS

1

KHR50310

LAMP

ASSY, 70W, Incl 2 - 4

1шт.

2

KHR4148

LENS

1шт.

3

KHR2476

WORK LAMP

1шт.

4

P0340501K

BULB

1шт.

5

KHN0539

WASHER

1шт.

6

KHR3748

COLLAR

2шт.

7

167320A1

BOLT,Spcl, M8 x 20mm

1шт.

8

150496A1

MOUNTING CLIP

250mm

1шт.

9

KHR50220

LAMP

ASSY, 70W, Incl 10 - 14

1шт.

10

KHR25390

LENS

1шт.

11

152812A1

BULB

1шт.

12

167034A1

NUT

M14 x 1.5

1шт.

13

892-16014

LOCK WASHER,M14, Hvy

1шт.

14

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

1шт.

15

KHR50060

BRACKET

1шт.

16

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

17

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

18

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

19

167518A1

BOLT

M8 x 16mm

1шт.

20

KHR2583

CLAMP

1шт.

21

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

1шт.
