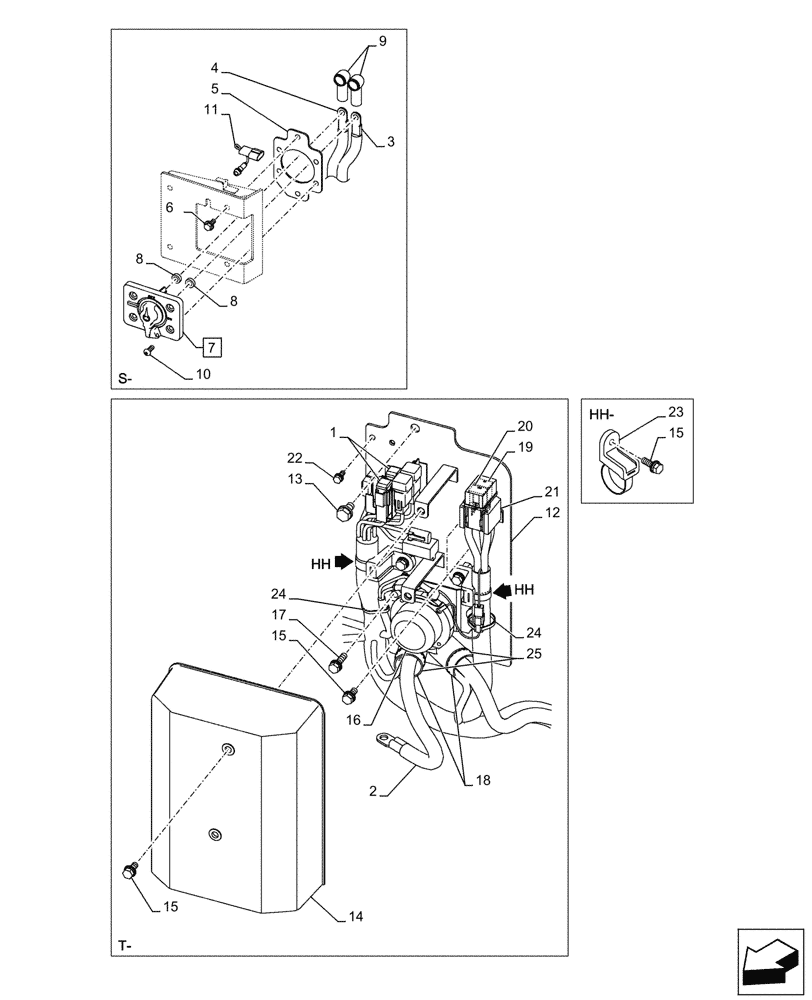

Запчасти Case CX245D (55.100.060) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KHR3850

FUSE

A3 50A

2шт.

Parts is included in Main Wire Harness Assembly PN KRR23110

1шт.

2

KHR26680

POS BATTERY CABLE

1шт.

3

KHR35400

POS BATTERY CABLE

1шт.

4

KHR46380

CABLE

1шт.

5

KRR24730

BRACKET

1шт.

6

166350A1

BOLT

M8 x 20mm

2шт.

7

KHR34681

ROTARY SWITCH

ASSY, Incl 8

1шт.

8

KHR49150

SPACER

2шт.

9

KHR39760

CAP

2шт.

10

KHR37580

BOLT

M8 x 20mm

4шт.

11

KHR47290

WORK LAMP

1шт.

12

KRR24810

BRACKET

1шт.

13

166351A1

BOLT,Sems, M10 x 20mm

2шт.

14

KHR39190

COVER

1шт.

15

167320A1

BOLT,Spcl, M8 x 20mm

6шт.

16

159897A1

RELAY

1шт.

17

KHR2309

BOLT,Spcl

M8 x 30mm

2шт.

18

KHR42030

CAP

2шт.

19

KHR39840

FUSE

B1 60A

1шт.

20

KHR39850

FUSE

B1 100A

1шт.

21

KHR42470

FUSE HOLDER

1шт.

22

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

23

KHR2581

CLAMP

M8

2шт.

24

150496A1

MOUNTING CLIP

250mm

2шт.

25

150067A1

MOUNTING CLIP

150mm

2шт.
