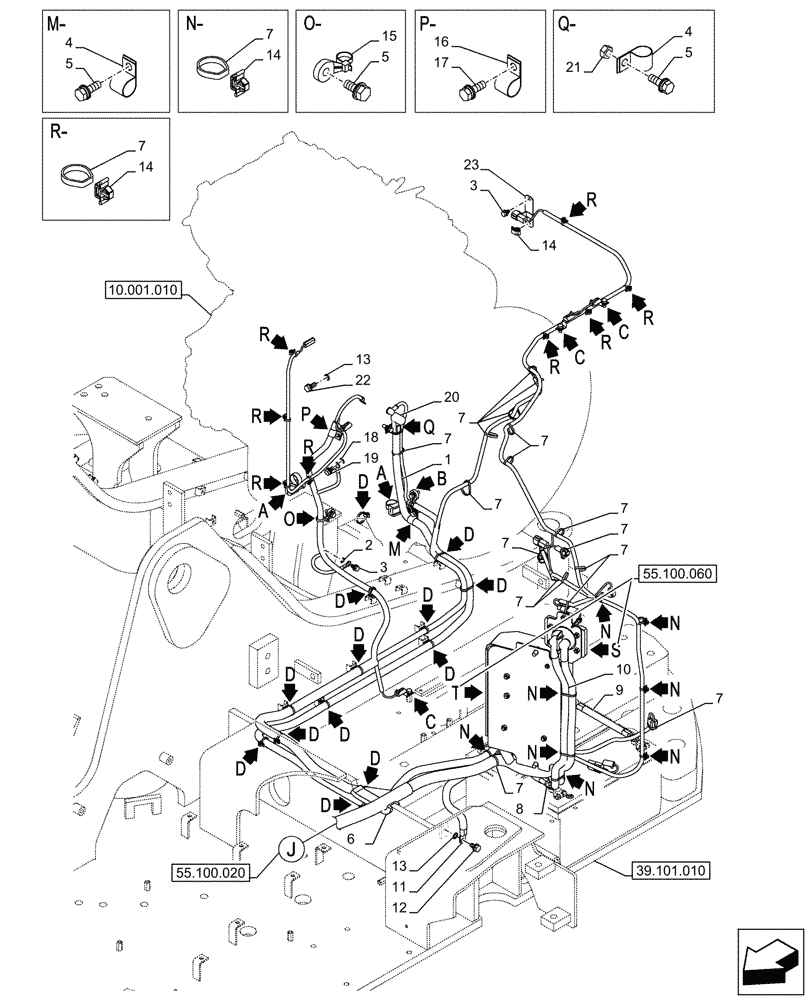

Запчасти Case CX245D (55.100.020) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

KHR50330

CABLE

1шт.

2

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

3

167518A1

BOLT

M8 x 16mm

2шт.

4

162150A1

CLAMP

2шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.

6

KAJ4772

SEAL PROTECTION

19mm x 150mm

1шт.

7

150496A1

MOUNTING CLIP

250mm

34шт.

8

KHR26680

POS BATTERY CABLE

1шт.

9

KHR15070

NEG BATTERY CABLE

1шт.

10

KHR35400

POS BATTERY CABLE

1шт.

11

KHR46380

CABLE

1шт.

12

166351A1

BOLT,Sems, M10 x 20mm

1шт.

13

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

14

KHR10220

MOUNTING CLIP

17шт.

15

KHR2584

CLAMP

1шт.

16

157806A1

COLLAR

1шт.

17

KHR1828

BOLT,Spcl

M5 x 12mm

1шт.

18

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

19

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

20

KHR4114

PROTECTOR

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

22

166052A1

BOLT

M10 x 25mm

1шт.

23

KRR24820

BRACKET

1шт.
