(55.036.020) - VAR - 461561, 461865 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT

Запчасти Case CX245D (55.036.020) - VAR - 461561, 461865 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT (55) - ELECTRICAL SYSTEMS

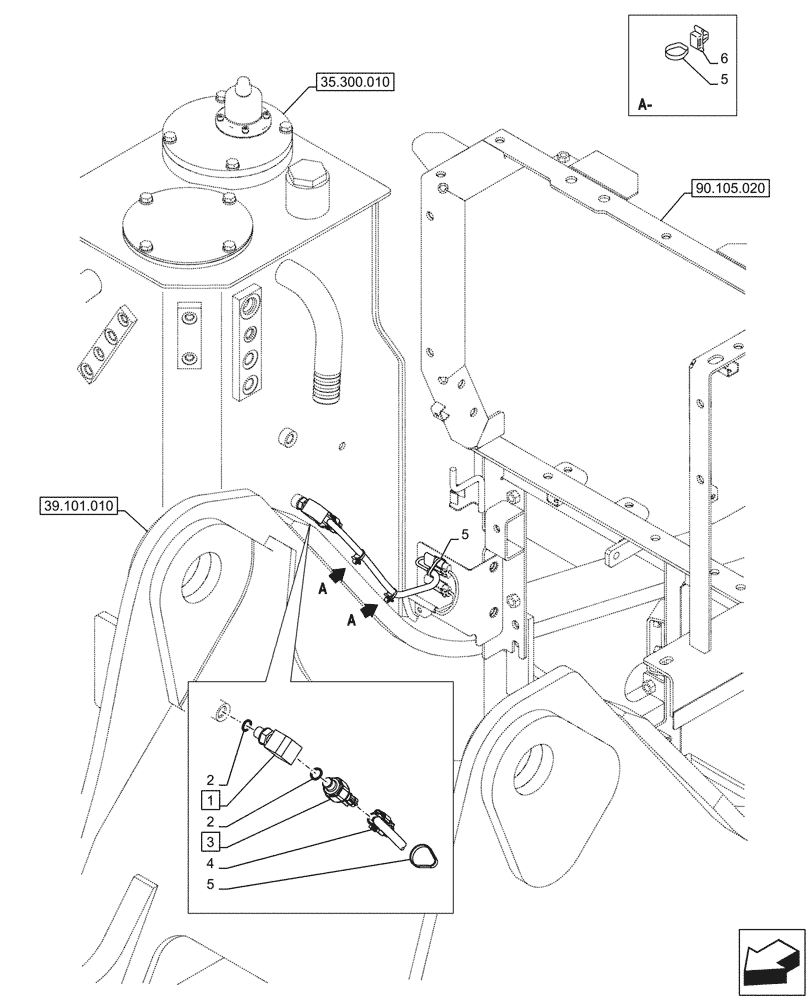

Схема запчастей Case CX245D - (55.036.020) - VAR - 461561, 461865 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT (55) - ELECTRICAL SYSTEMS
90.105.020
2
4
5
2
5
5
6
1
3
39.101.010
35.300.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ0719

ELBOW

ASSY, G1/4" x G1/4", Incl 2 (Qty 1)

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

3

KHR32870

SENSOR

ASSY, 1MPa x G1/4", Incl 2 (Qty 1)

1шт.

4

KHR33420

WIRE HARNESS

1шт.

5

150496A1

MOUNTING CLIP

250mm

4шт.

6

KHR10220

MOUNTING CLIP

2шт.

Выбрано товаров: 6
