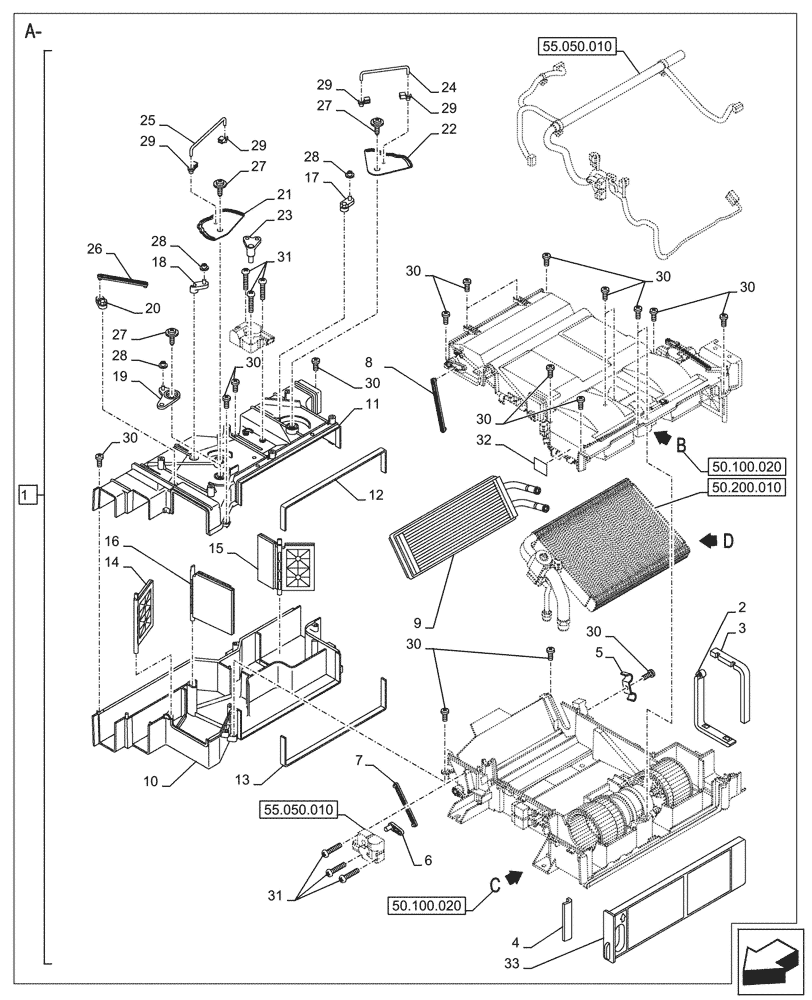

Запчасти Case CX245D (50.100.010) - AIR CONDITIONING, W/ HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL

1

KHR30650

AIR CONDITIONER

ASSY, Incl 2 - 33, Serial Range: -C0561

1шт.

See also Figure 50.100.020

1шт.

1

KHR30651

AIR CONDITIONER

ASSY, Incl 2 - 33, Start Serial: D0561

1шт.

See also Figure 50.100.020

1шт.

2

KHR31140

PACKING

1шт.

3

KHR31150

PACKING

1шт.

4

KHR31160

PACKING

1шт.

5

KHR31180

HOLDER

1шт.

6

KHR31280

LEVER

, Serial Range: -C0561

1шт.

6

KHR46880

, Start Serial: D0561

LEVER

1шт.

7

KHR31320

ROD

, Serial Range: -C0561

1шт.

7

KHR46920

, Start Serial: D0561

ROD

1шт.

8

KHR31330

ROD

, Serial Range: -C0561

1шт.

8

KHR46930

, Start Serial: D0561

ROD

1шт.

9

KHR31400

HEATER

1шт.

10

KHR31420

BOX

, Serial Range: -C0561

1шт.

10

KHR46970

, Start Serial: D0561

BOX

1шт.

11

KHR31430

BOX

, Serial Range: -C0561

1шт.

11

KHR46980

, Start Serial: D0561

BOX

1шт.

12

KHR31440

PACKING

1шт.

13

KHR31450

PACKING

1шт.

14

KHR31460

DAMPER

, Serial Range: -C0561

1шт.

14

KHR46990

, Start Serial: D0561

DAMPER

1шт.

15

KHR31470

DAMPER

, Serial Range: -C0561

1шт.

15

KHR47000

, Start Serial: D0561

DAMPER

1шт.

16

KHR31480

DAMPER

, Serial Range: -C0561

1шт.

16

KHR47010

, Start Serial: D0561

DAMPER

1шт.

17

KHR31490

LEVER

, Serial Range: -C0561

1шт.

17

KHR47020

, Start Serial: D0561

LEVER

1шт.

18

KHR31500

LEVER

, Serial Range: -C0561

1шт.

18

KHR47030

, Start Serial: D0561

LEVER

1шт.

19

KHR31510

JOINT

, Serial Range: -C0561

1шт.

19

KHR47040

, Start Serial: D0561

JOINT

1шт.

20

KHR31520

LEVER

, Serial Range: -C0561

1шт.

20

KHR47050

, Start Serial: D0561

LEVER

1шт.

21

KHR31530

LINK

1шт.

22

KHR31650

LINK

1шт.

23

KHR31660

LEVER

, Serial Range: -C0561

1шт.

23

KHR47060

, Start Serial: D0561

LEVER

1шт.

24

KHR31670

ROD

1шт.

25

KHR31680

ROD

1шт.

26

KHR31690

ROD

, Serial Range: -C0561

1шт.

26

KHR47070

, Start Serial: D0561

ROD

1шт.

27

KHR31700

SCREW

3шт.

28

KHR31710

BUSHING

, Serial Range: -C0561

3шт.

28

KHR47080

, Start Serial: D0561

BUSHING

3шт.

29

KHR31720

HOLDER

4шт.

30

KHR31740

SCREW

M5 x 16mm, Serial Range: -C0561

23шт.

30

KHR47090

M5 x 16mm, Start Serial: D0561

SCREW

23шт.

31

KHR31750

SCREW

9шт.

32

KHR31760

NAMEPLATE

1шт.

33

KHR31800

CAB FILTER

1шт.
