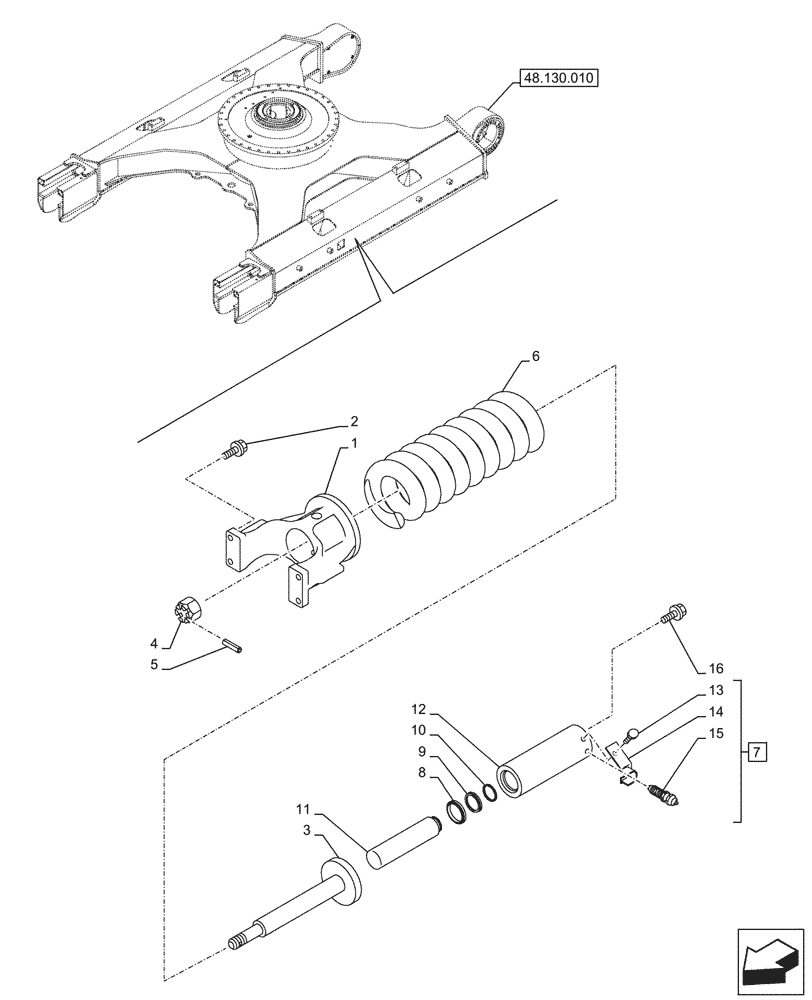

Запчасти Case CX245D (48.134.010) - TENSION SPRING (48) - TRACKS & TRACK SUSPENSION

1

KBA15020

YOKE

2шт.

2

165929A1

BOLT,Sems, M16

M16 x 50mm

8шт.

3

KBA14180

THREADED ROD

2шт.

4

175R052HSN

SLOTTED NUT

M52 x 2

2шт.

5

738-1880

LOCK PIN,8mm OD x 80mm L, Slotted

2шт.

6

KBA16970

SPRING

2шт.

7

KBA16490

HYDRAULIC CYLINDER

ASSY, Incl 8 - 15

2шт.

8

KBA16510

SEAL

2шт.

9

KBA12900

GASKET

2шт.

10

370A0650Z

SNAP RING

2шт.

11

KBA14160

PISTON ROD

2шт.

12

KBA14170

LUBE NIPPLE

2шт.

13

166351A1

BOLT,Sems, M10 x 20mm

2шт.

14

KBA10370

SUPPORT

2шт.

15

150107A1

LUBE NIPPLE

2шт.

16

165930A1

BOLT,Sems, M16 x 55mm

4шт.
