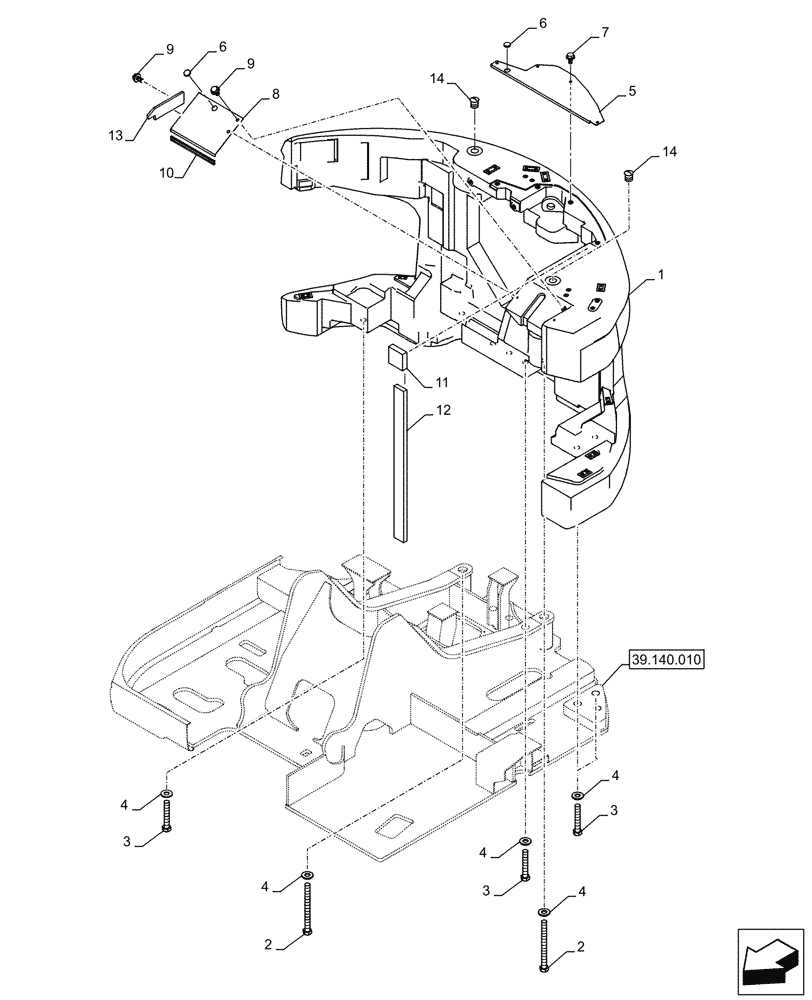

Запчасти Case CX245D (39.140.020) - COUNTERWEIGHT, INSULATION (39) - FRAMES AND BALLASTING

1

KRB28010Y2

COUNTERWEIGHT

7.4 T

1шт.

2

MFV4052

BOLT

M33 x 37mm

2шт.

3

KHB14170

BOLT

M33 x 21mm

7шт.

4

KHB11720

WASHER

9шт.

5

KRB28160Y2

COVER

1шт.

6

151409A1

GROMMET

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

8

KRB28141G4

COVER

1шт.

9

KHN39331

BOLT

M12 x 25mm

3шт.

10

HKH0047

GASKET

L=4mm

1шт.

11

KRB26670

INSULATION

1шт.

12

KRB26720

SEAL

1шт.

13

KRB28600

INSULATION

1шт.

14

KHB14130

CAP

2шт.
