(35.741.110) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LINES, SAFETY VALVE

Запчасти Case CX245D (35.741.110) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LINES, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

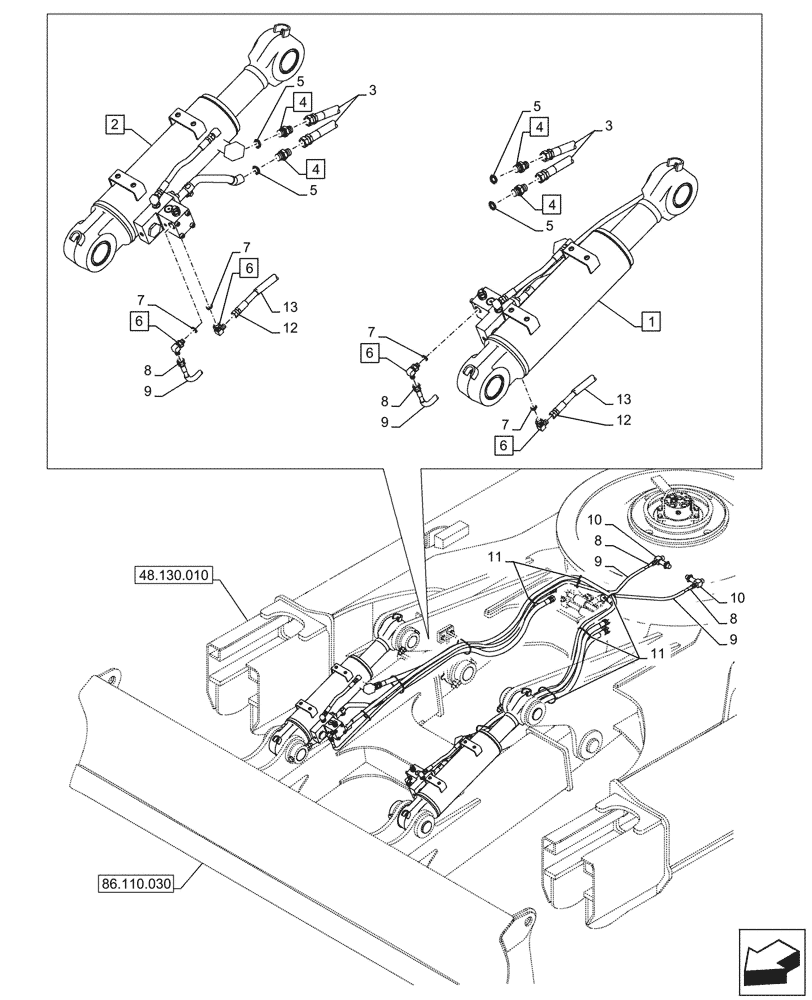

Схема запчастей Case CX245D - (35.741.110) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LINES, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
48.130.010
5
12
6
5
7
5
8
7
6
3
6
3
11
8
6
9
11
4
12
5
13
4
9
2
13
9
1
8
8
10
7
4
4
10
7
9
86.110.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV15250

HYDRAULIC CYLINDER

ASSY

1шт.

2

KRV15260

HYDRAULIC CYLINDER

ASSY

1шт.

3

KRV45940

HYDRAULIC HOSE

From Hydraulic Swivel To Cylinder Blade

4шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 5

4шт.

5

154487A1

O-RING

4шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

ASSY, G1/4" x G1/4", Incl 7

4шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

8

KAJ3471

HYDRAULIC HOSE

From Hydraulic Swivel To Cylinder Blade

2шт.

9

153308A1

TUBE,10.5 mm ID, 14.1 mm OD, 2400 mm Length

10mm ID x 2400mm

2шт.

10

KHJ1381

FITTING

2шт.

11

150067A1

MOUNTING CLIP

150mm

10шт.

12

KRV45960

HYDRAULIC HOSE

6mm ID x L5mm, From Hydraulic Swivel To Cylinder Blade

1шт.

13

KRH1396

PLASTIC-RUBBER TUBE

15mm ID x 3400mm

1шт.
