(35.741.100) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LEFT, COMPONENTS, SAFETY VALVE

Запчасти Case CX245D (35.741.100) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LEFT, COMPONENTS, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

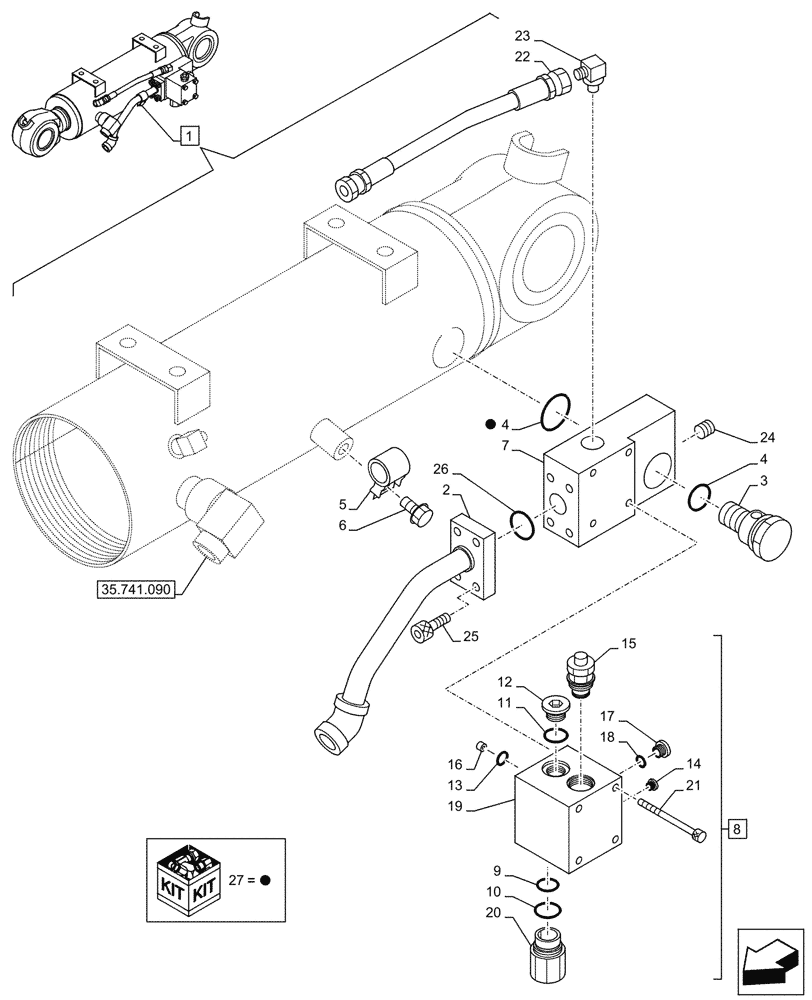

Схема запчастей Case CX245D - (35.741.100) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LEFT, COMPONENTS, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
35.741.090
15
23
18
21
16
14
27
13
26
24
19
4
25
7
6
4
20
27
1
11
22
17
27
8
10
9
2
12
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV15250

HYDRAULIC CYLINDER

ASSY, Incl 2 - 27

1шт.

See also Figure 35.741.090

1шт.

2

LR014870

HYD TUBE

1шт.

3

LK00348

PLUG

1шт.

4

154515A1

O-RING

2шт.

5

LS00179

BRACKET

1шт.

6

LA00789

BOLT,Spcl

1шт.

7

LR014880

PLATE

1шт.

8

LJ00990

SAFETY VALVE

ASSY, Incl 9 - 20

1шт.

9

169204A1

O-RING

1шт.

10

154491A1

O-RING

1шт.

11

154475A1

O-RING

1шт.

12

LK00195

PLUG

1шт.

13

154459A1

O-RING

4шт.

14

163367A1

PLUG

2шт.

15

LJ018640

VALVE PRESSURE RELIE

29.4MPa x 1L

1шт.

16

169213A1

ORIFICE

1шт.

17

LK00328

PLUG

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

NSS

NOT SOLD SEPARAT

Body, Incl in 8

1шт.

20

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

1шт.

21

863-8080

HEX SOC SCREW,M8 x 80mm, Cl 12.9

M8 x 80F12.9Tmm

4шт.

22

LK005590

HOSE

1шт.

23

LK00402

FITTING

1шт.

24

TLU0003

PLUG

1шт.

25

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

M8 x 25F12.9mm

4шт.

26

154499A1

O-RING

1шт.

27

LZ00542

SEAL KIT

1шт.

See also Figure 35.741.090

1шт.
