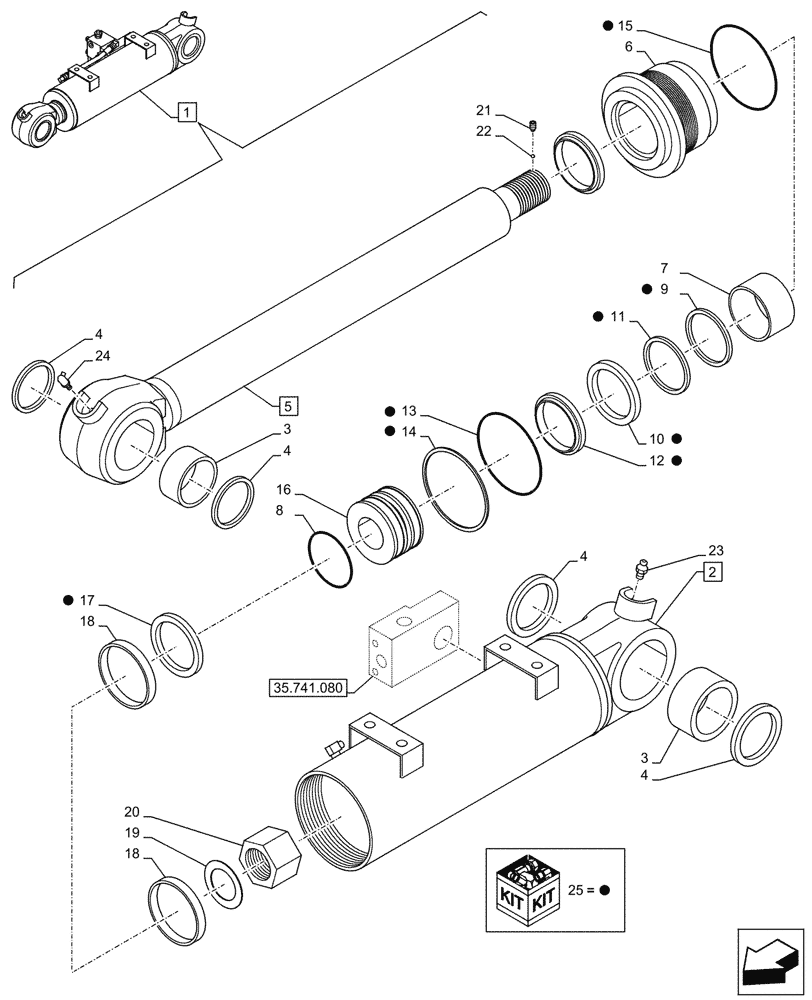

Запчасти Case CX245D (35.741.070) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, RIGHT, COMPONENTS, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

1

KRV15260

HYDRAULIC CYLINDER

ASSY, Incl 2 - 25

1шт.

See also Figure 35.741.080

1шт.

2

LZ007840

HYD CYL SLEEVE

ASSY, Incl 3 (Qty 1)

1шт.

3

161031A1

BUSHING

2шт.

4

164445A1

RING

4шт.

5

LB00849

PISTON ROD

ASSY, Incl 3 (Qty 1)

1шт.

6

LU00173

PISTON ROD

1шт.

7

155416A1

BUSHING

1шт.

8

155696A1

RING, SNAP

1шт.

9

155136A1

SCRAPER RING

1шт.

10

155132A1

RING,80mm ID x 95mm OD x 9mm Thk

1шт.

11

155241A1

BACK-UP RING

1шт.

12

LE019430

WIPER

1шт.

13

154769A1

O-RING

1шт.

14

LE00433

BACK-UP RING

1шт.

15

154775A1

O-RING

1шт.

16

LJ01017

PISTON

1шт.

17

155323A1

SEALING RING

1шт.

18

LE00910

SEALING STRIP

2шт.

19

155737A1

SHIM

1шт.

20

LA00675

SPECIAL NUT

1шт.

21

156223A1

SET SCREW

1шт.

22

155977A1

BALL

1шт.

23

153630A1

LUBE NIPPLE

1шт.

24

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.

25

LZ00542

SEAL KIT

1шт.

See also Figure 35.741.080

1шт.
