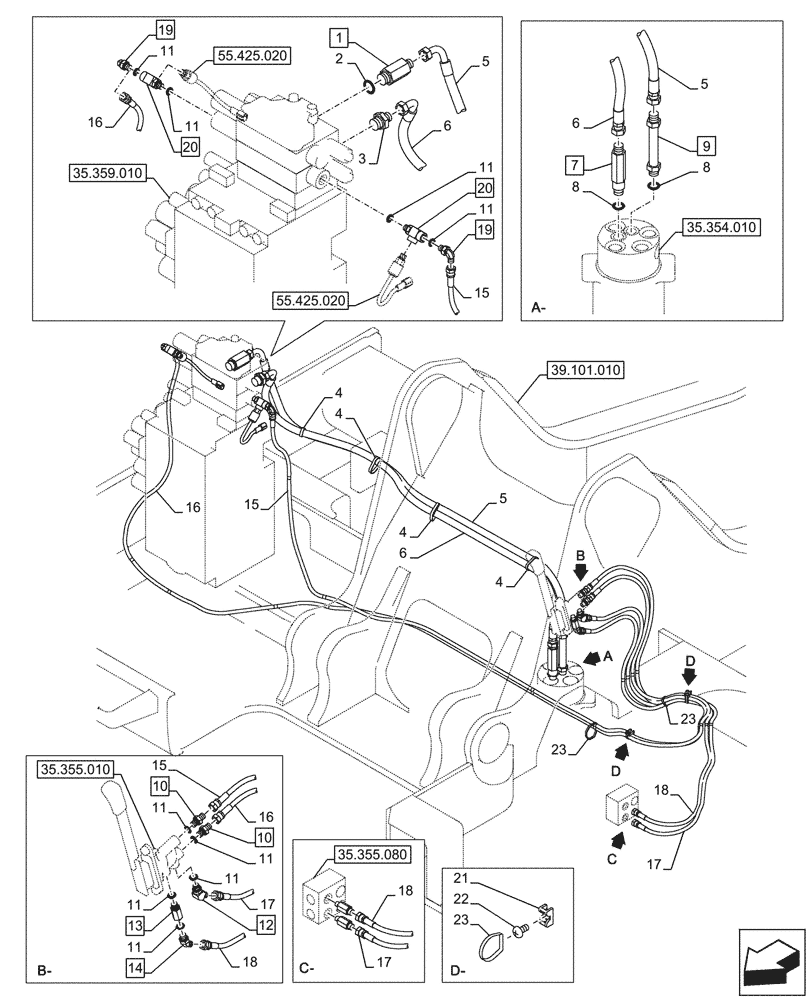

Запчасти Case CX245D (35.741.040) - DOZER BLADE, LINES (35) - HYDRAULIC SYSTEMS

1

KAJ3396

ADAPTER

ASSY, Incl 2

1шт.

2

154503A1

O-RING

1шт.

3

168988A1

ADAPTER

G1/2" x G3/4"

1шт.

4

150071A1

MOUNTING CLIP

380mm

4шт.

5

KRJ39360

HYDRAULIC HOSE

12mm ID x 1480mm

1шт.

6

KRJ30540

HYDRAULIC HOSE

12mm ID x 1510mm

1шт.

7

KHJ2232

ADAPTER

ASSY, G1/2" x G1/2", Incl 8 (Qty 1)

1шт.

8

154487A1

O-RING

2шт.

9

KAJ2433

ADAPTER

ASSY, G1/2" x G1/2", Incl 8 (Qty 1)

1шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

2шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

9шт.

12

KHJ0994

ADAPTER

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

13

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

14

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

1шт.

15

KHJ37990

HOSE

6mm ID x 3450mm

1шт.

16

KHJ38000

HOSE

6mm ID x 4300mm

1шт.

17

KHJ2059

HOSE

6mm ID x 1650mm

1шт.

18

KHJ2011

HOSE

6mm ID x 1600mm

1шт.

19

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 11 (Qty 1)

2шт.

20

KHJ12530

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 11 (Qty 1)

2шт.

21

150860A1

COLLAR

2шт.

22

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

23

150496A1

MOUNTING CLIP

250mm

4шт.
