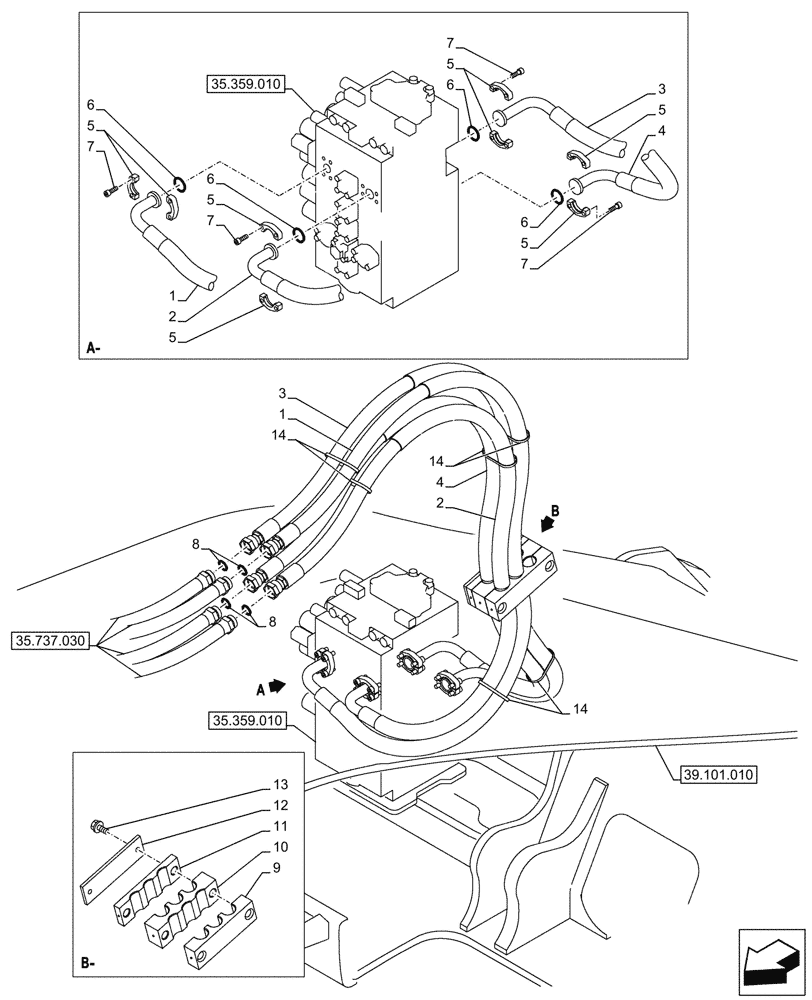

Запчасти Case CX245D (35.737.010) - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

KRJ42841

25mm ID x 2790mm, From Control Valve to Arm Cylinder

HYDRAULIC HOSE

1шт.

2

KRJ42851

25mm ID x 2410mm, From Control Valve to Arm Cylinder

HYDRAULIC HOSE

1шт.

3

KRJ42861

25mm ID x 2780mm, From Control Valve to Arm Cylinder

HYDRAULIC HOSE

1шт.

4

KRJ42871

25mm ID x 2480mm, From Control Valve to Arm Cylinder

HYDRAULIC HOSE

1шт.

5

153459A1

FLANGE

8шт.

6

155211A1

O-RING

4шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

8

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

9

KRJ42760

CLAMP

1шт.

10

KRJ42780

CLAMP

1шт.

11

KRJ39080

CLAMP

1шт.

12

KRJ39090

PLATE

1шт.

13

166347A1

BOLT,Sems, M10 x 30mm

2шт.

14

150071A1

MOUNTING CLIP

380mm

6шт.
