(35.360.320) - VAR - 461561, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS (ARM L= 2.4M)

Запчасти Case CX245D (35.360.320) - VAR - 461561, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS (ARM L= 2.4M) (35) - HYDRAULIC SYSTEMS

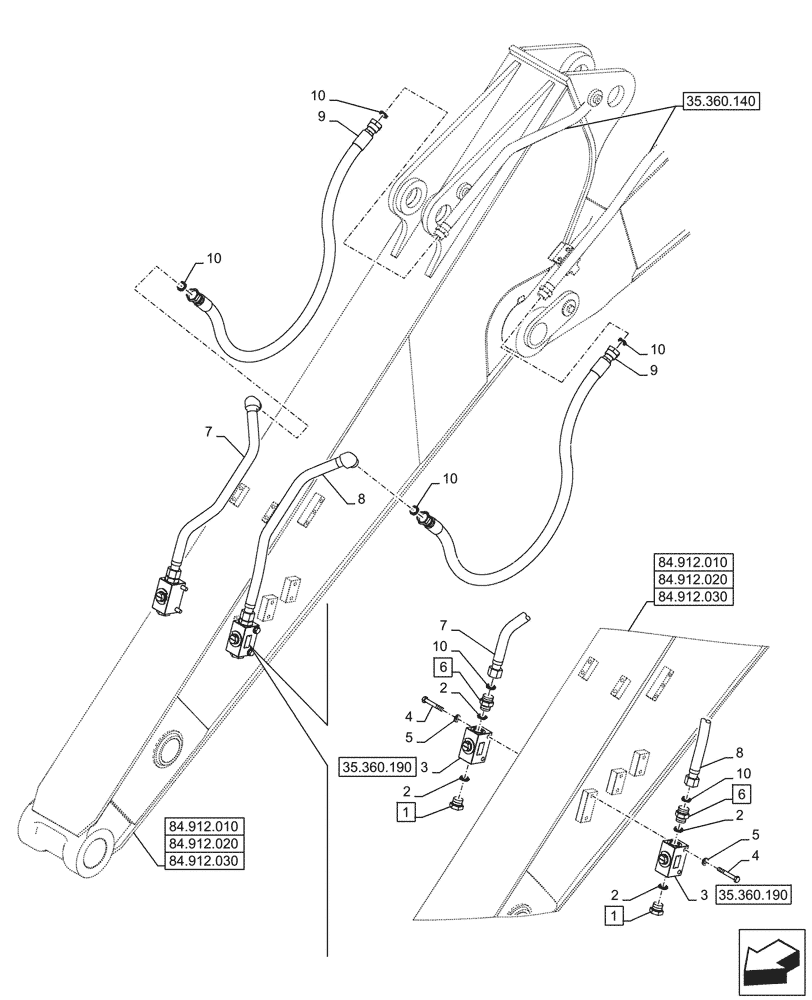

Схема запчастей Case CX245D - (35.360.320) - VAR - 461561, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS (ARM L= 2.4M) (35) - HYDRAULIC SYSTEMS
84.912.020
5
3
7
1
6
2
1
8
8
2
2
10
4
10
9
10
7
3
10
2
5
10
4
10
9
6
84.912.030
84.912.030
35.360.190
35.360.190
84.912.010
84.912.010
35.360.140
84.912.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162659A1

PLUG

ASSY, Incl 2 (Qty 1)

2шт.

2

154523A1

O-RING

4шт.

3

KHV10430

SHUT-OFF VALVE

ASSY

2шт.

4

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

4шт.

5

150811A1

WASHER

4шт.

6

KHJ1349

ADAPTER

ASSY, Incl 2 (Qty 1)

2шт.

7

KRV33170

HYD TUBE

1шт.

8

KRV33160

PIPE

1шт.

9

KBV23640

HYDRAULIC HOSE

2шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

Выбрано товаров: 10
