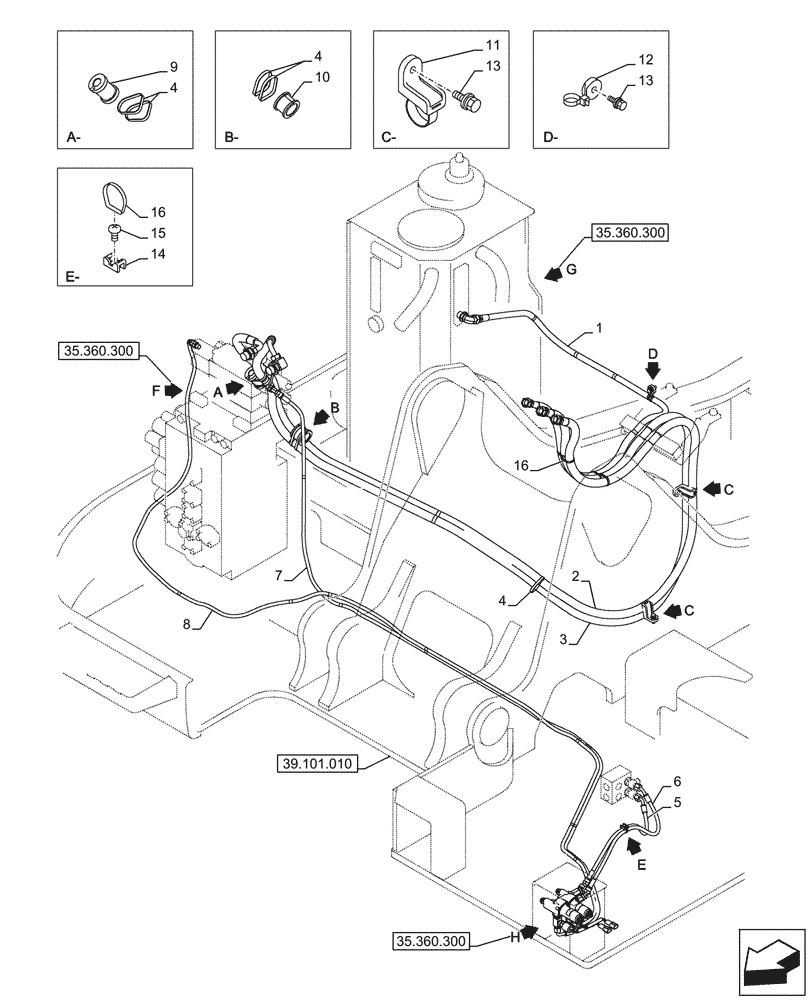

Запчасти Case CX245D (35.360.290) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KRJ39440

HYDRAULIC HOSE

12mm ID x 1790mm

1шт.

2

KRJ42390

HYDRAULIC HOSE

12mm ID x 3590mm

1шт.

3

KRJ42420

HYDRAULIC HOSE

12mm ID x 3660mm

1шт.

4

150071A1

MOUNTING CLIP

380mm

1шт.

5

KHJ32800

HOSE

6mm ID x 550mm

1шт.

6

KHJ12210

HOSE ASSY.

6mm ID x 620mm

1шт.

7

KHJ17990

HOSE

6mm ID x 3150mm

1шт.

8

KHJ11480

HYDRAULIC HOSE,6.35 mm ID x 3950.00 mm

6mm ID x 3950mm

1шт.

9

KHJ2021

HOSE CLAMP

1шт.

10

KHJ2024

COLLAR

1шт.

11

KHR2581

CLAMP

M8

1шт.

12

KHR2584

CLAMP

1шт.

13

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

14

150860A1

COLLAR

1шт.

15

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

16

150496A1

MOUNTING CLIP

250mm

1шт.
