Запчасти Case CX245D (35.360.200) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.4M) (35) - HYDRAULIC SYSTEMS

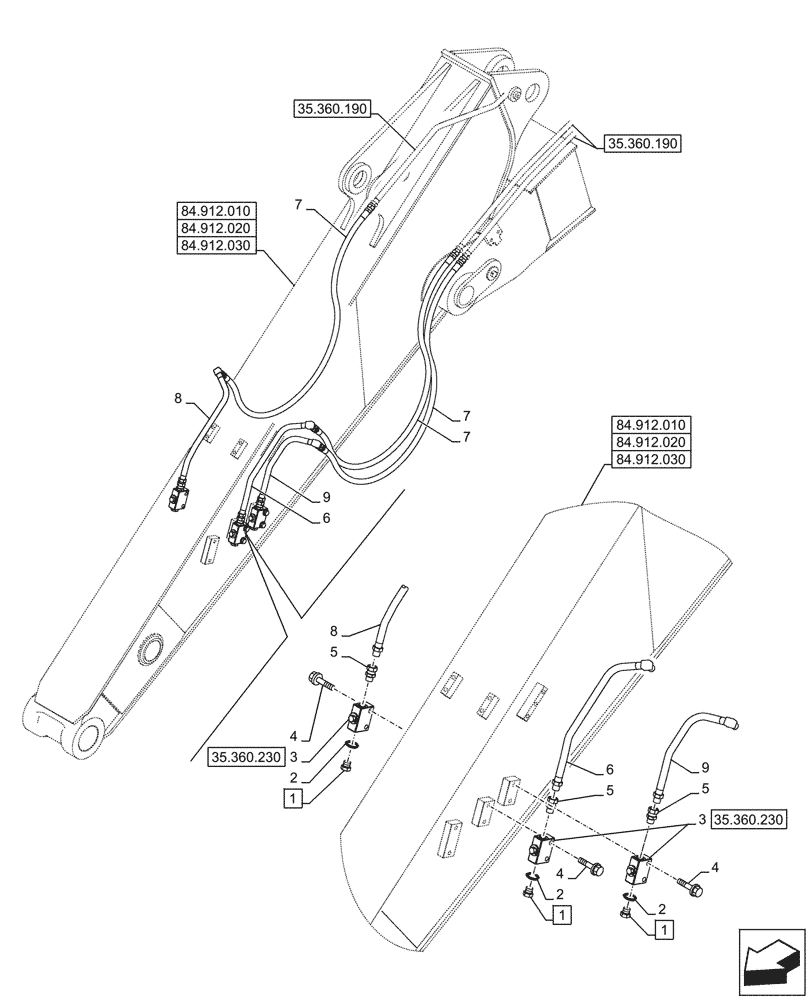

Схема запчастей Case CX245D - (35.360.200) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.4M) (35) - HYDRAULIC SYSTEMS
84.912.020
2
2
5
8
4
3
2
6
5
4
5
6
1
4
9
7
8
7
7
1
9
3
1
35.360.230
35.360.230
84.912.030
84.912.030
35.360.190
35.360.190
84.912.010
84.912.010
84.912.020

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, Incl 2

3шт.

2

154487A1

O-RING

3шт.

3

KHV10440

VALVE

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

3шт.

6

KRV33180

PIPE

1шт.

7

KAV1558

HYDRAULIC HOSE

3шт.

8

KRV33190

PIPE

1шт.

9

KRV33200

PIPE

1шт.

Выбрано товаров: 9
