(35.360.130) - HAMMER CIRCUIT, LINES

Запчасти Case CX245D (35.360.130) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

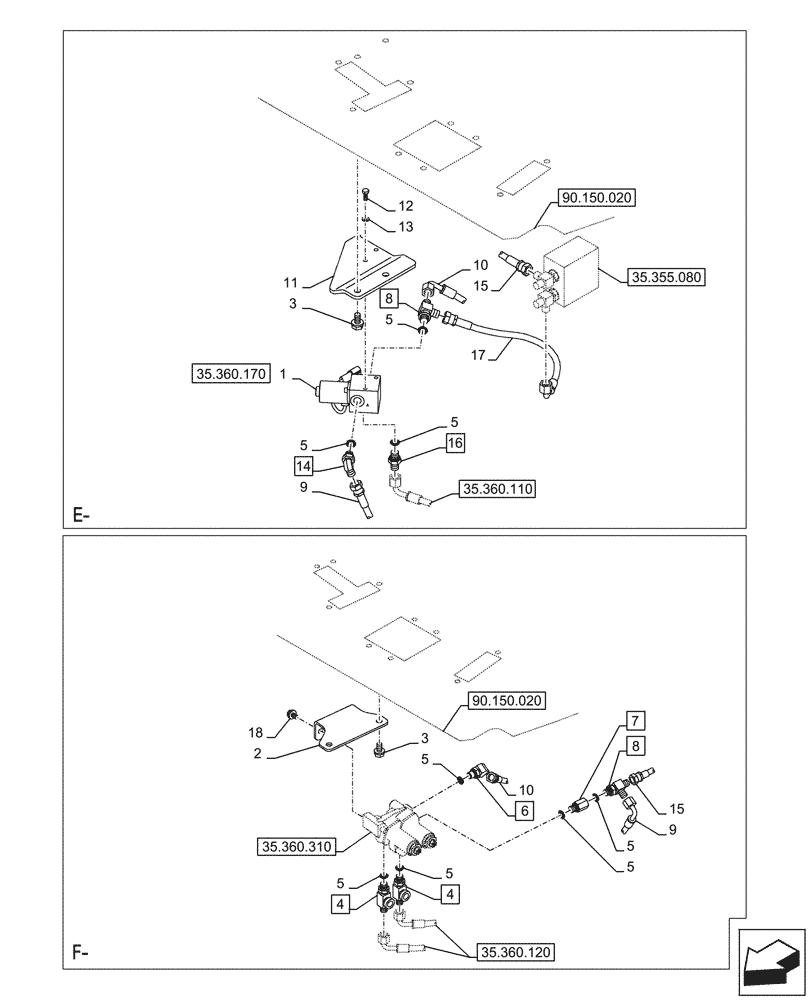

Схема запчастей Case CX245D - (35.360.130) - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS
35.360.120
15
10
3
8
5
18
11
13
5
16
7
9
9
2
5
1
6
5
5
10
4
5
4
12
8
15
5
14
5
17
3
90.150.020
90.150.020
35.360.110
35.360.170
35.360.310
35.355.080
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162538A1

VALVE

ASSY

1шт.

2

KHJ28770

BRACKET

1шт.

3

166351A1

BOLT,Sems, M10 x 20mm

M1 x 2mm

4шт.

4

167666A1

FITTING

ASSY, G1/4" x G1/4", Incl 5 (Qty 1)

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

8шт.

6

KHJ0994

ADAPTER

ASSY, Incl 5 (Qty 1)

1шт.

7

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 5 (Qty 1)

1шт.

8

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 5 (Qty 1)

2шт.

9

KHJ2238

HOSE

6mm ID x 32mm

1шт.

10

KHJ2084

HOSE

6mm ID x 35mm

1шт.

11

KRJ32940

BRACKET

1шт.

12

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

13

183-106VR

SPRING WASHER

2шт.

14

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 5 (Qty 1)

1шт.

15

KHJ2189

HOSE ASSY.

6mm ID x 28mm

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 5 (Qty 1)

1шт.

17

KHJ2239

HOSE,520.00 mm

6mm ID x 52mm

1шт.

18

166345A1

BOLT

M8 x 16mm

2шт.
