(35.359.010) - CONTROL VALVE, MOUNTING, BRACKET

Запчасти Case CX245D (35.359.010) - CONTROL VALVE, MOUNTING, BRACKET (35) - HYDRAULIC SYSTEMS

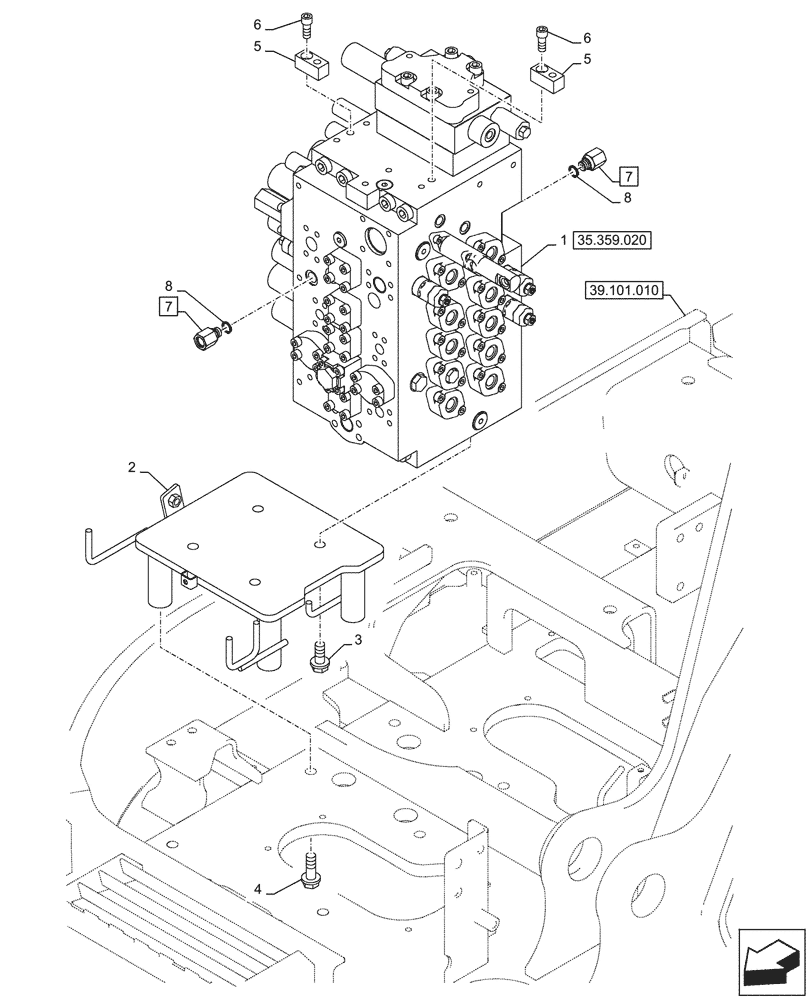

Схема запчастей Case CX245D - (35.359.010) - CONTROL VALVE, MOUNTING, BRACKET (35) - HYDRAULIC SYSTEMS
35.359.020
8
3
4
7
1
2
8
6
5
6
7
5
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ43900

ASSY

CONTROL VALVE

1шт.

2

KRJ42281

BRACKET

1шт.

3

166373A1

BOLT,Sems, M16 x 40mm

4шт.

4

165929A1

BOLT,Sems, M16

M16 x 50mm

4шт.

5

KBJ19550

BRACKET

2шт.

6

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

2шт.

7

KHJ18190

STUD

ASSY, G3/8" x M18, Incl 8

2шт.

8

154475A1

O-RING

2шт.
