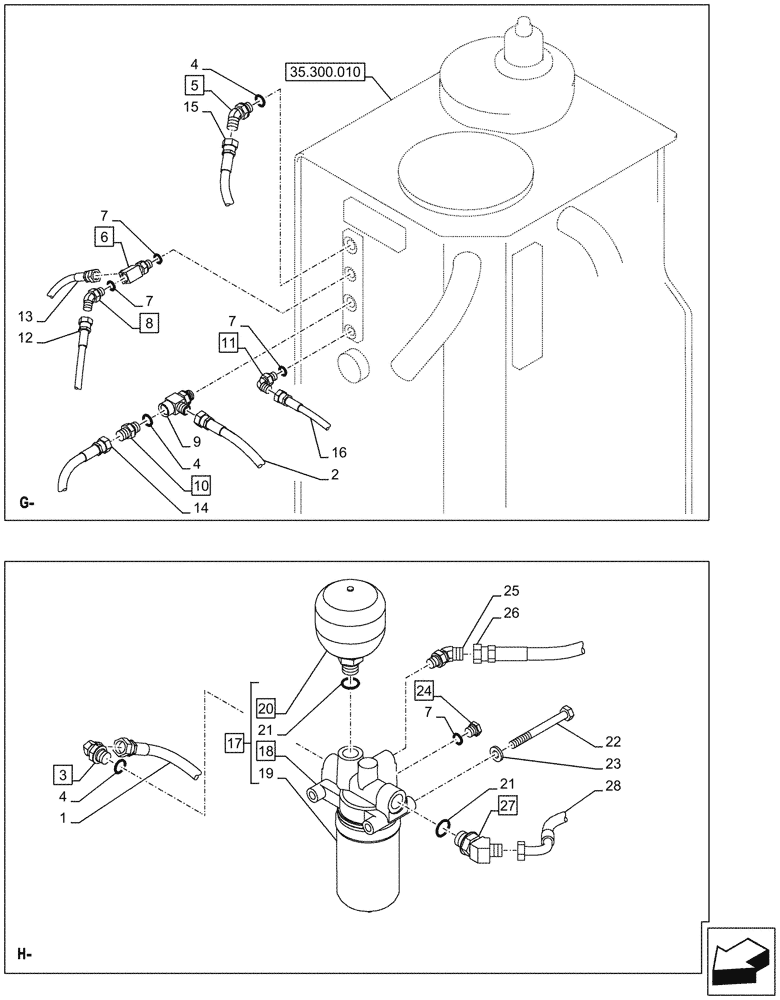

Запчасти Case CX245D (35.357.030) - PILOT, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ2145

HOSE

9mm ID x 3200mm, From Accumlator to Solenoid Valve

1шт.

2

KHJ29470

HOSE

09mm ID x 1850mm, From Hydraulic Oil Reservoir to Solenoid Valve

1шт.

3

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 4 (Qty 1)

1шт.

4

154475A1

O-RING

3шт.

5

KHJ28640

ELBOW

ASSY, G3/8" x G3/8", Incl 4 (Qty 1)

1шт.

6

KHJ2773

TEE

ASSY, G1/4", Incl 7 (Qty 1)

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

8

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 7 (Qty 1)

1шт.

9

KHJ31880

TEE

ASSY, 3-G3/8", Incl 9

1шт.

10

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 4 (Qty 1)

1шт.

11

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 7 (Qty 1)

1шт.

12

KHJ13800

HOSE

6mm ID x 1350mm, From Control Valve to Hydraulic Oil Reservoir

1шт.

13

KHJ2050

HOSE,6.3mm ID x 1000mm L

6mm ID x 1000mm, From Control Valve to Hydraulic Oil Reservoir

1шт.

14

KHJ2037

HOSE

9mm ID x 1000mm, From Hydraulic Oil Reservoir to Control Valve

1шт.

15

KHJ37970

HOSE

9mm ID x 2850mm, From Hydraulic Oil Reservoir to Manifold Valve

1шт.

16

KHJ17990

HOSE

6mm ID x 3150mm, From Hydraulic Oil Reservoir to Cushion Valve

1шт.

17

KHJ17710

FILTER ASSY

ASSY, Incl 18 - 21

1шт.

18

KHJ17720

FILTER HEAD

ASSY, Incl 19

1шт.

19

KHJ17730

HYDRAULIC OIL FILTER

1шт.

20

KHJ27610

ACCUMULATOR

ASSY, Incl 21 (Qty 1)

1шт.

21

154487A1

O-RING

2шт.

22

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

23

150409A1

WASHER

M12

2шт.

24

159002A1

PLUG

ASSY, G1/4", Incl 7 (Qty 1)

1шт.

25

KHJ28750

ELBOW

G1/4" x G3/8"

1шт.

26

KHJ37980

HOSE

09mm ID x 990mm, From Hydraulic Pump to Accumlator

1шт.

27

KHJ1254

ELBOW

ASSY, G1/2" x G3/8", Incl 21 (Qty 1)

1шт.

28

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

9mm ID x 350mm, From Hydraulic Pump to Accumlator

1шт.
