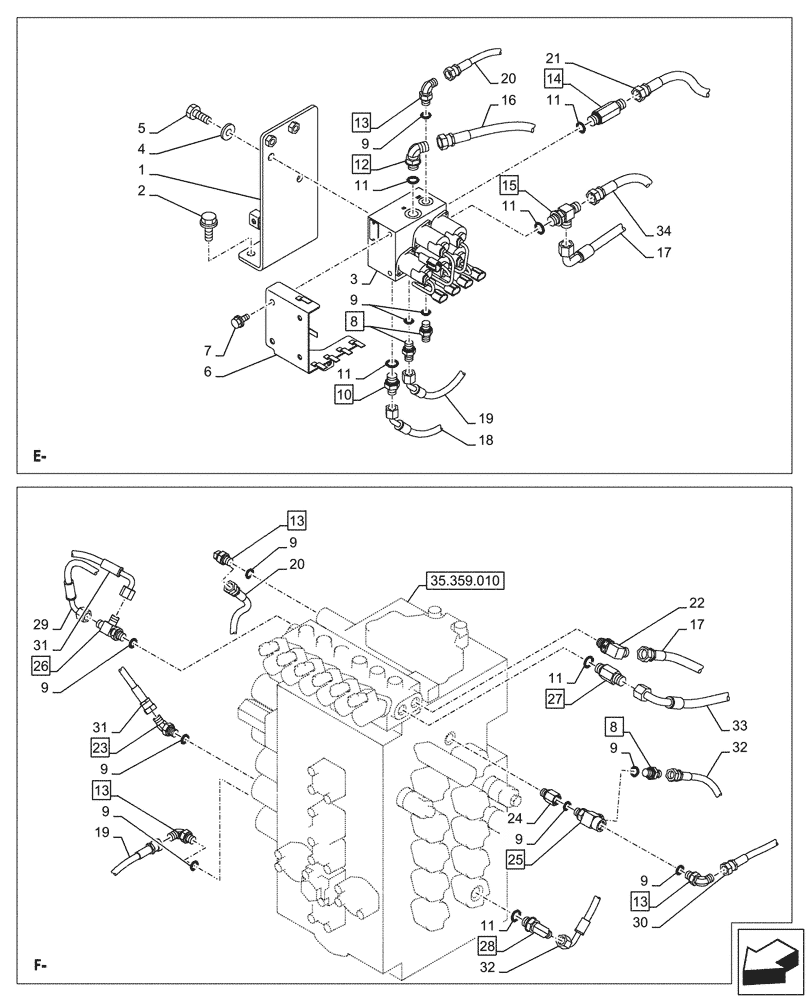

Запчасти Case CX245D (35.357.020) - PILOT, LINES (35) - HYDRAULIC SYSTEMS

1

KRJ43300

BRACKET

1шт.

2

166052A1

BOLT

M10 x 25mm

2шт.

3

KHJ28510

VALVE

1шт.

4

150409A1

WASHER

M12

2шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

6

KRJ43210

BRACKET

1шт.

7

166345A1

BOLT

M8 x 16mm

2шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 9 (Qty 1)

3шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

10шт.

10

153378A1

ADAPTER

ASSY, G3/8" x G1/4", Incl 11 (Qty 1)

1шт.

11

154475A1

O-RING

6шт.

12

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 11 (Qty 1)

1шт.

13

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 9 (Qty 1)

4шт.

14

KAJ2351

FITTING

ASSY, G3/8" x G3/8", Incl 11 (Qty 1)

1шт.

15

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, 3-G3/8", Incl 11 (Qty 1)

1шт.

16

KHJ2145

HOSE

9mm ID x 3200mm, From Accumlator to Solenoid Valve

1шт.

17

KHJ11570

HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm

9mm ID x 1300mm, From Control Valve to Solenoid Valve

1шт.

18

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

6mm ID x 1850mm, From Swing Motor to Solenoid Valve

1шт.

19

KHJ22470

6mm ID x 1300mm, From Control Valve to Solenoid Valve

HYDRAULIC HOSE

1шт.

20

KHJ2062

HOSE

6mm ID x 1800mm, From Control Valve to Solenoid Valve

1шт.

21

KHJ29470

HOSE

09mm ID x 1850mm, From Hydraulic Oil Reservoir to Solenoid Valve

1шт.

22

KHJ29610

ELBOW

G3/8" x G3/8"

1шт.

23

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 9 (Qty 1)

1шт.

24

KHJ36210

STUD

G1/4"

1шт.

25

KHJ12530

TEE

ASSY, 3-G1/4", Incl 9 (Qty 1)

1шт.

26

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 9 (Qty 1)

1шт.

27

159226A1

ADAPTER

ASSY, G3/8" x G3/8", Incl 11 (Qty 1)

1шт.

28

KHJ28690

ELBOW

ASSY, G3/8" x G1/4", Incl 11 (Qty 1)

1шт.

29

KHJ13800

HOSE

6mm ID x 1350mm, From Control Valve to Hydraulic Oil Reservoir

1шт.

30

KHJ2050

HOSE,6.3mm ID x 1000mm L

6mm ID x 1000mm, From Control Valve to Hydraulic Oil Reservoir

1шт.

31

KHJ2309

HOSE

6mm ID x 550mm, From Control Valve to Control Valve

1шт.

32

KHJ2351

HOSE

6mm ID x 420mm, From Control Valve to Control Valve

1шт.

33

KHJ2037

HOSE

9mm ID x 1000mm, From Hydraulic Oil Reservoir to Control Valve

1шт.

34

KHJ35680

HOSE

9mm ID x 2200mm, From Solenoid Valve to Manifold Valve

1шт.
