(35.357.010) - PILOT, LINES

Запчасти Case CX245D (35.357.010) - PILOT, LINES (35) - HYDRAULIC SYSTEMS

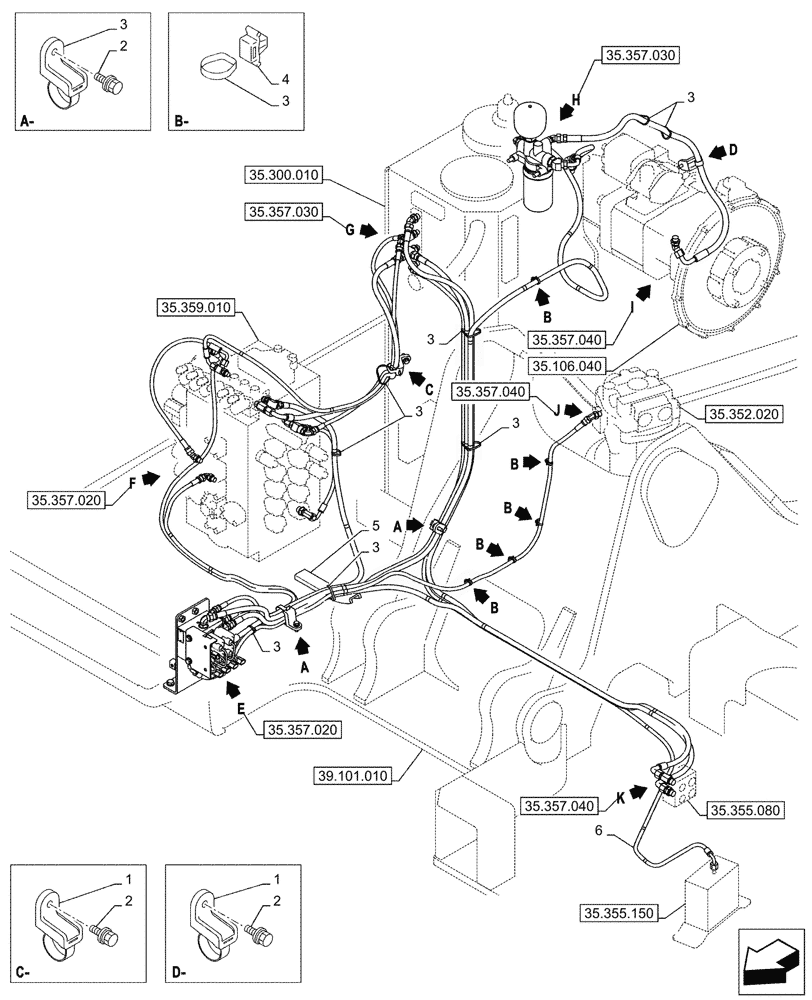

Схема запчастей Case CX245D - (35.357.010) - PILOT, LINES (35) - HYDRAULIC SYSTEMS
35.357.030
2
2
3
5
3
2
4
3
6
1
3
3
3
3
3
35.352.020
1
35.357.040
35.357.040
35.357.040
35.359.010
39.101.010
35.355.150
35.106.040
35.300.010
35.357.020
35.357.020
35.355.080
35.357.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR2581

CLAMP

M8

4шт.

2

KHJ1215

BOLT,Spcl

M8 x 25mm

4шт.

3

150496A1

MOUNTING CLIP

250mm

13шт.

4

KHR10220

MOUNTING CLIP

5шт.

5

KAJ5200

SEAL PROTECTION

L=230mm

1шт.

6

KHJ17990

HOSE

6mm ID x 3150mm

1шт.
