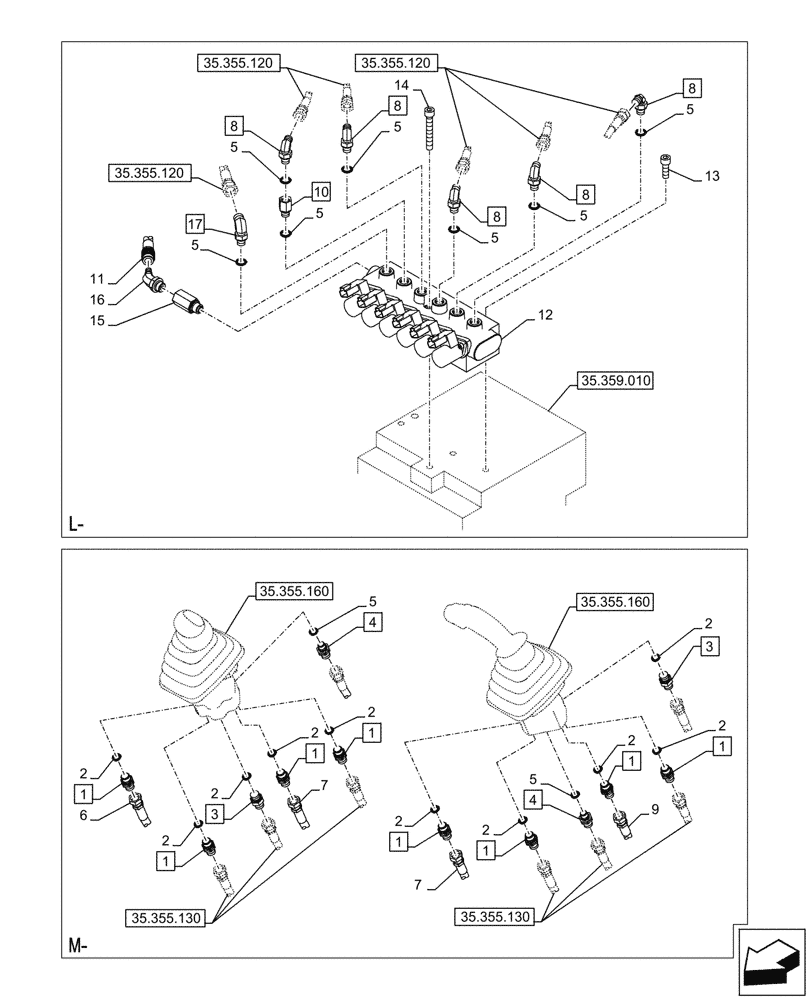

Запчасти Case CX245D (35.355.140) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

8шт.

2

150031A1

O-RING,10mm ID x 24mm OD

10шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

2шт.

4

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, G1/4" x G3/8", Incl 5

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

9шт.

6

KHJ38020

HYDRAULIC HOSE

9mm ID x 195mm, From Remote Control Valve to Cushion Valve

1шт.

7

KHJ38030

HYDRAULIC HOSE

9mm ID x 22mm, From Remote Control Valve to Cushion Valve

2шт.

8

KHJ28580

ELBOW

ASSY, G1/4" x G1/4"Incl 5 (Qty1)

5шт.

9

KHJ38010

HYDRAULIC HOSE

9mm ID x 185mm, From Remote Control Valve to Cushion Valve

1шт.

10

KHJ13640

STUD

ASSY, G1/4", Incl 5 (Qty1)

1шт.

11

KHJ38130

HYDRAULIC HOSE

9mm ID x 385mm, From Valve Reducing to Cushion Valve

1шт.

12

KHJ28520

VALVE

1шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M1 x 3mm

3шт.

14

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

M1 x 7mm

1шт.

15

AEV10120

STUD

G3/8" x G3/8"

1шт.

16

KHJ38270

ELBOW

G3/8" x G3/8"

1шт.

17

KHJ28710

ELBOW

ASSY, G1/4" x G3/8", Incl 5 (Qty 1)

1шт.
