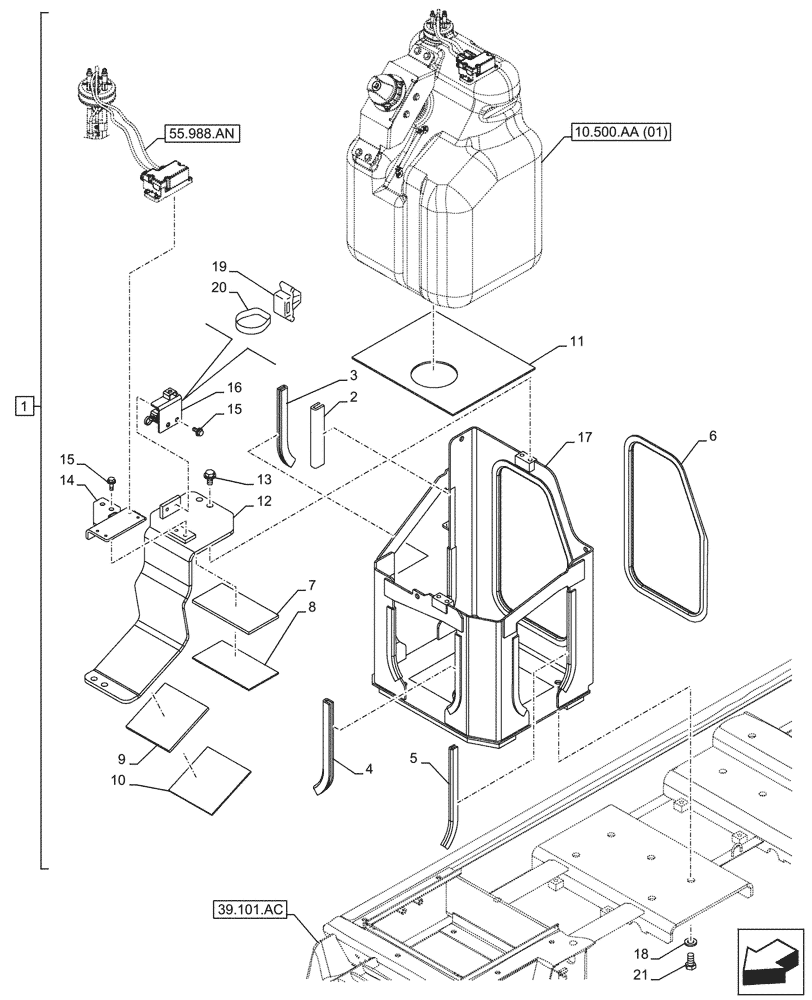

Запчасти Case CX210D NLC (10.500.AA[03]) - DEF/ADBLUE™ TANK, COMPONENTS (10) - ENGINE

1

KRH19350

TANK

ASSY, Incl 2 - 17

1шт.

See also Figure 10.500.AA (01), 10.500.AA (02), 55.988.AN

1шт.

2

KBH14521

SEAL PROTECTION

140mm

1шт.

3

KBH14531

SEAL PROTECTION

250mm

3шт.

4

KSH14561

SEAL PROTECTION

300mm

2шт.

5

KBH14541

SEAL PROTECTION

350mm

1шт.

6

KRH17920

SEAL PROTECTION

1500mm

1шт.

7

KLH12060

SEAL

1шт.

8

KLH12070

PLATE

1шт.

9

KLH12080

SEAL

1шт.

10

KLH12090

PLATE

1шт.

11

KLH12100

PLATE

1шт.

12

KLH12110

BRACKET

1шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

14

KRH18110

BRACKET

1шт.

15

166350A1

BOLT

M8 x 20mm

4шт.

16

KLH12130

BRACKET

1шт.

17

KLH12290

BRACKET

1шт.

18

157548A1

WASHER

M16

4шт.

19

KHR10220

MOUNTING CLIP

1шт.

20

150496A1

MOUNTING CLIP

250mm

1шт.

21

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.
