(10.304.AF[01]) - ENGINE OIL FILTER, LINE

Запчасти Case CX210D NLC (10.304.AF[01]) - ENGINE OIL FILTER, LINE (10) - ENGINE

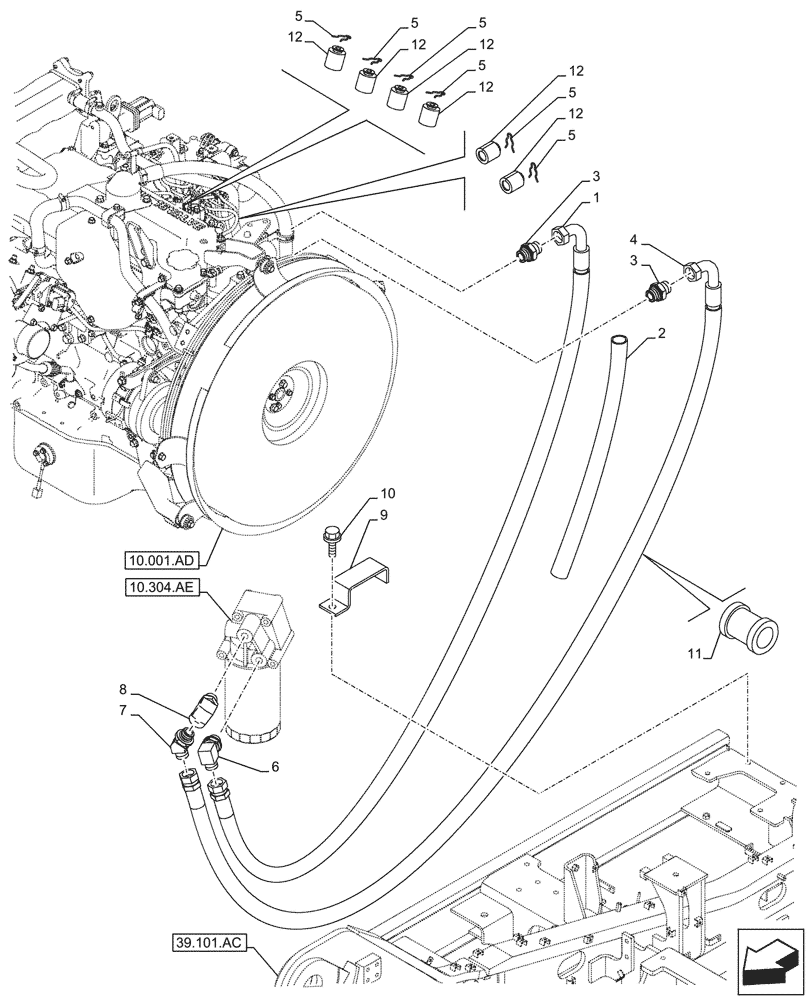

Схема запчастей Case CX210D NLC - (10.304.AF[01]) - ENGINE OIL FILTER, LINE (10) - ENGINE
10.304.ae
7
5
4
5
12
12
6
5
12
5
1
5
5
10
8
12
2
3
12
9
12
3
11
39.101.ac
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRH14030

HYDRAULIC HOSE

1250mm, from Engine to Engine Oil Filter

1шт.

2

KMR12260

PROTECTIVE SLEEVE

28mm ID x 580mm, from Engine to Engine Oil Filter

1шт.

3

KHH14620

ADAPTER

G3/4" x G3/4"

2шт.

4

KRH11320

HYDRAULIC HOSE

1500mm, from Engine to Engine Oil Filter

1шт.

5

KHH14600

LOCK PIN

6шт.

6

KHH14660

ELBOW

1шт.

7

KHH14670

ELBOW

1шт.

8

KHH17590

ELBOW UNION

1шт.

9

KHH13550

BRACKET

1шт.

10

166052A1

BOLT

M10 x 25mm

1шт.

11

KHJ2023

HOSE CLAMP

2шт.

12

KHH14570

CAP

6шт.
