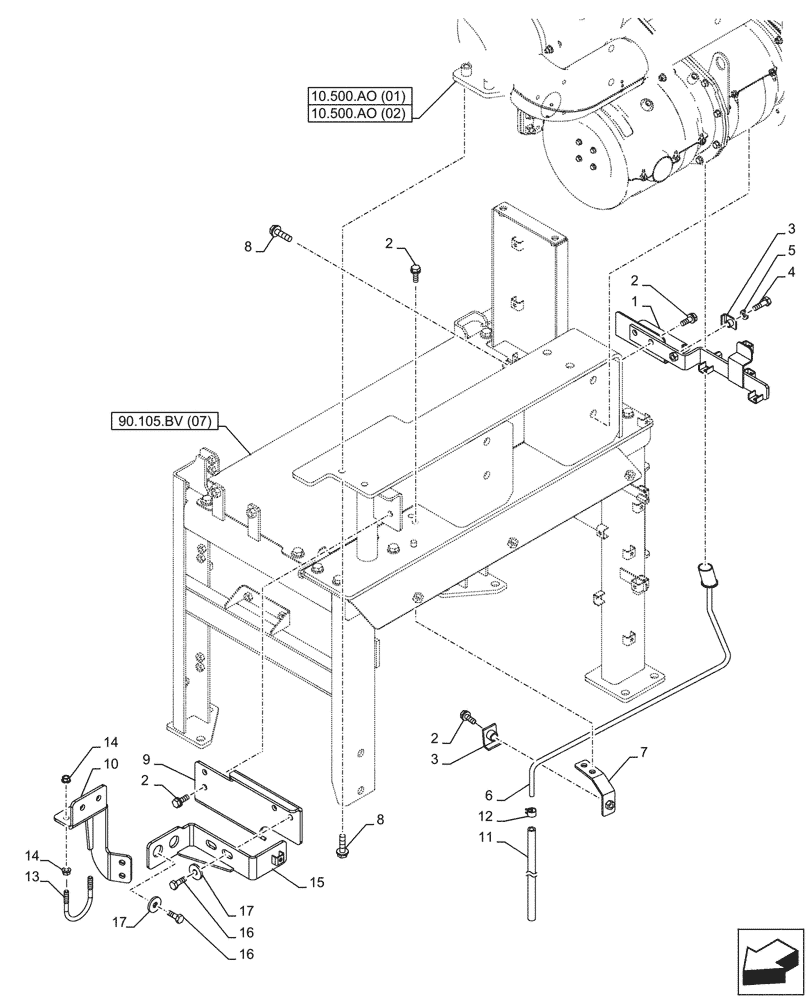

Запчасти Case CX210D NLC (10.254.AD[02]) - EXHAUST SYSTEM, EXHAUST PIPE (10) - ENGINE

1

KBH16950

BRACKET

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

7шт.

3

KLH11320

CLAMP

1шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

M10 x 35mm

1шт.

5

150409A1

WASHER

M10

1шт.

6

KRH17830

PIPE

1шт.

7

KRH17840

BRACKET

1шт.

8

105R012Y045R

BOLT

M12 x 45mm

8шт.

9

KBH14730

BRACKET

1шт.

10

KBH14750

BRACKET

1шт.

11

KHH14110

HOSE

750mm

1шт.

12

KHH0405

MOUNTING CLIP

1шт.

13

ADV1540

U-BOLT

M10 x 50mm

1шт.

14

KHH11440

FLANGE NUT

M10

4шт.

15

KBH14740

BRACKET

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

M10 x 30mm

4шт.

17

KHV10400

WASHER

M10

4шт.
