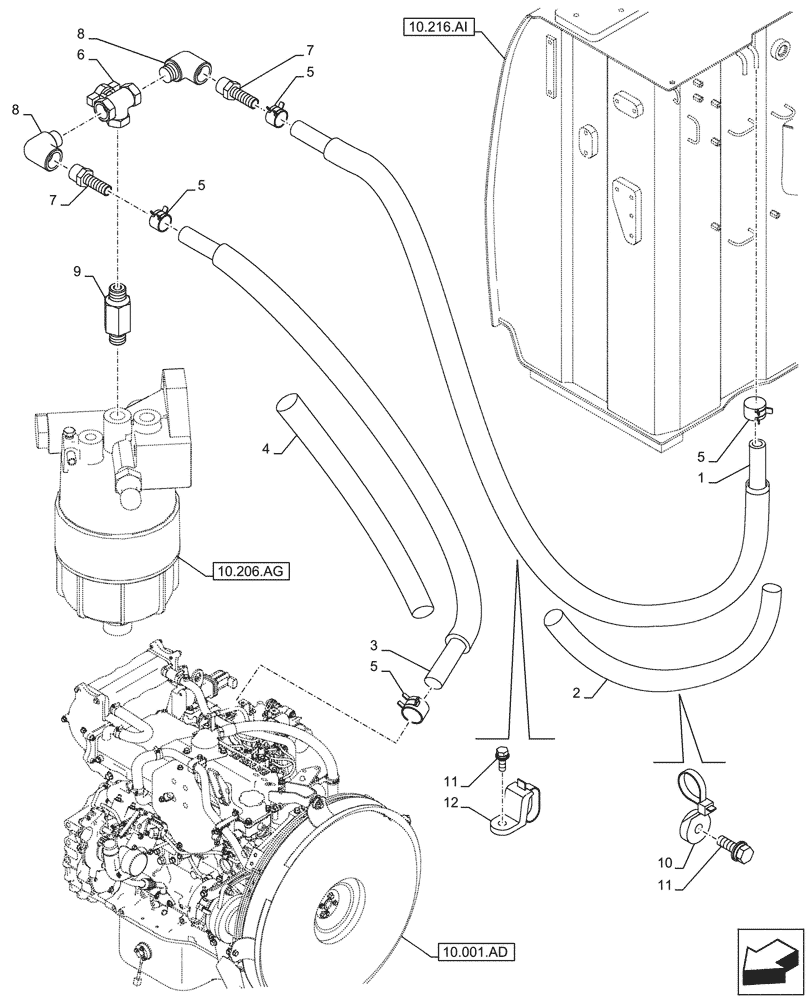

Запчасти Case CX210D NLC (10.216.BA[03]) - FUEL LINE (10) - ENGINE

1

KHH18580

HOSE

3300mm, From Fuel Filter to Fuel Tank

1шт.

2

KHR21050

PLASTIC-RUBBER TUBE

19mm ID x 3200mm

1шт.

3

KHH15930

HOSE

1500mm, From Fuel Filter to Engine

1шт.

4

KHR41240

PROTECTIVE SLEEVE

19mm ID x 1400mm

1шт.

5

KHH0405

MOUNTING CLIP

4шт.

6

KHH15171

COCK

1шт.

7

151252A1

NIPPLE, LUBE

2шт.

8

152159A1

ELBOW

2шт.

9

KHH18560

NIPPLE

1шт.

10

KHR2584

CLAMP

1шт.

11

KHJ1215

BOLT,Spcl

1шт.

12

KHR2581

CLAMP

M8

5шт.
