(10.216.BA[02]) - FUEL LINE

Запчасти Case CX210D NLC (10.216.BA[02]) - FUEL LINE (10) - ENGINE

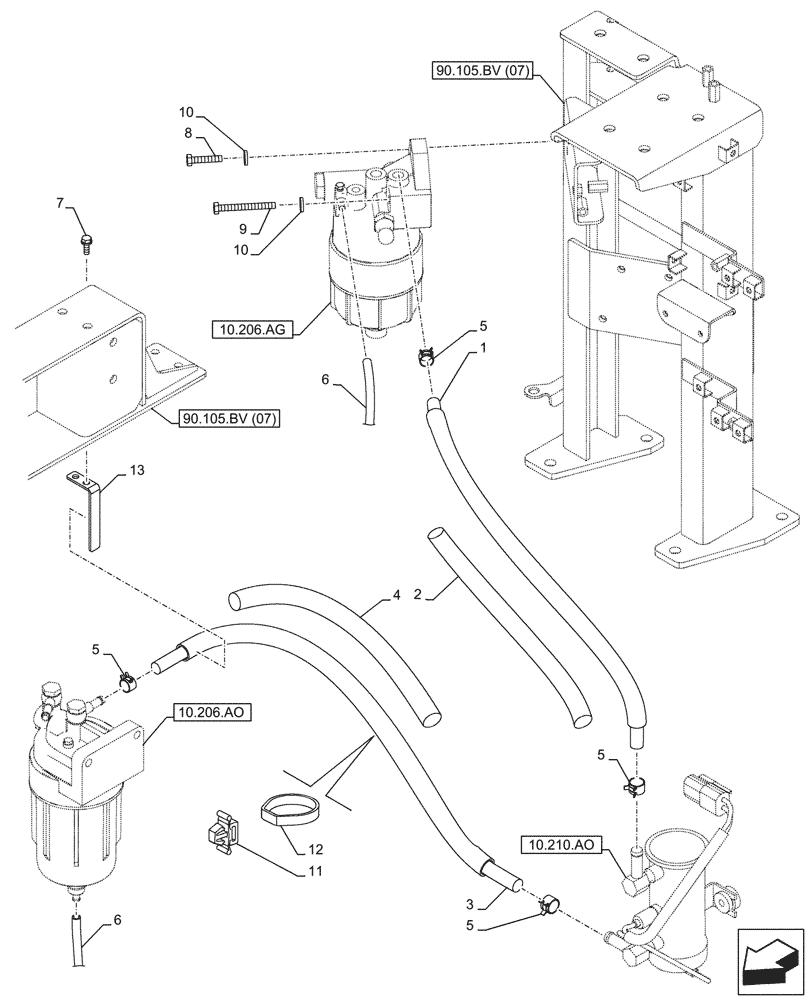

Схема запчастей Case CX210D NLC - (10.216.BA[02]) - FUEL LINE (10) - ENGINE
90.105.bv (07)
1
10
11
7
2
5
5
3
6
5
4
9
13
12
6
8
5
10
10.206.ao
10.210.ao
10.206.ag
90.105.bv (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHH10620

FUEL HOSE,300.00 mm

, From Fuel Filter to Feed Pump

1шт.

2

KHR31590

200mm

1шт.

3

KHH18570

HOSE

From Fuel Filter to Feed Pump

1шт.

4

KHR33660

PROTECTIVE SLEEVE

19mm ID x 650mm

1шт.

5

KHH0405

MOUNTING CLIP

4шт.

6

KHH12880

PLASTIC-RUBBER TUBE

2шт.

7

166347A1

BOLT,Sems, M10 x 30mm

2шт.

8

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

9

102R008Y075R

BOLT

M8 x 75mm

1шт.

10

153081A1

WASHER

M8

3шт.

11

KHR10220

MOUNTING CLIP

1шт.

12

150496A1

MOUNTING CLIP

250mm

1шт.

13

KRH19340

, Serial Range: -C0462

1шт.

13

KRH19341

, Start Serial: D0462

1шт.
