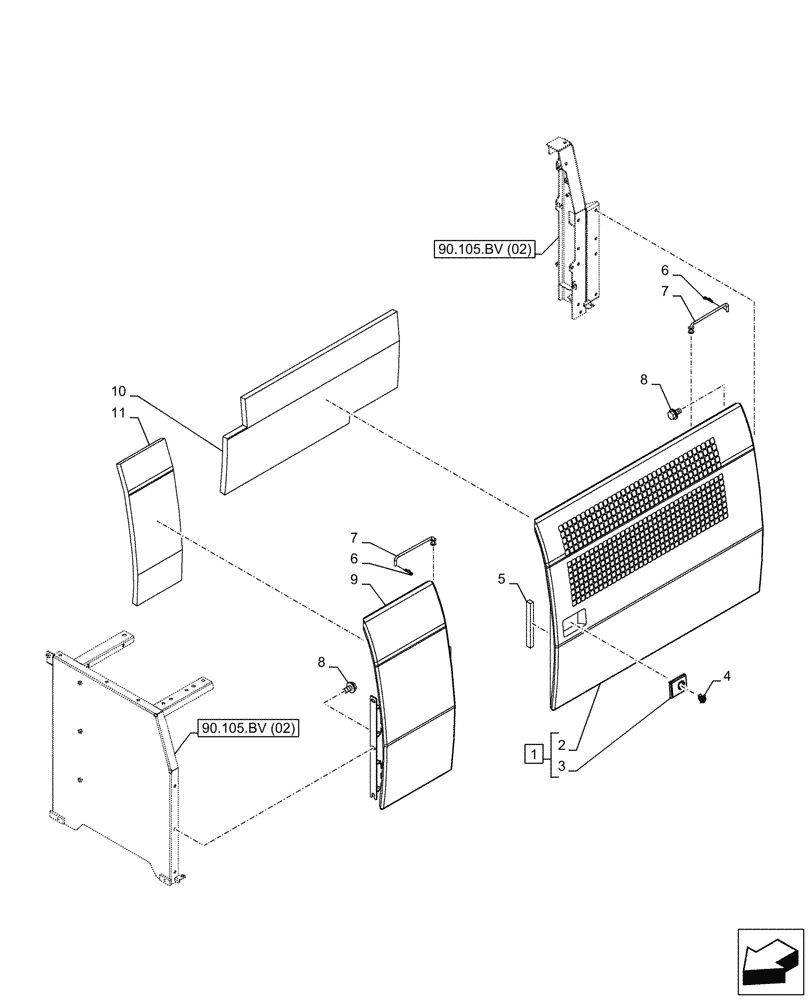

Запчасти Case CX210D NLC (90.105.CO[01]) - STD + VAR - 488031 - SIDE DOOR, LEFT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KBN19640Y2

DOOR

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Door, Incl in 1

1шт.

3

KHN24510

LOCK

1шт.

4

KHN24530

LOCK CYLINDER

1шт.

5

KBN17460

SEAL

1шт.

6

153181A1

COTTER PIN

2шт.

7

KBN17140

STAY

2шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

7шт.

9

KBN19630Y2

DOOR

LH

1шт.

10

KBN19950

INSULATION

, Serial Range: -C0493

1шт.

10

KBN19951

INSULATION

, Start Serial: D0493

1шт.

11

KBN17010

INSULATION

1шт.
