(90.105.CF) - STD + VAR - 488031 - HOOD, FUEL TRANSFER PUMP

Запчасти Case CX210D NLC (90.105.CF) - STD + VAR - 488031 - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS

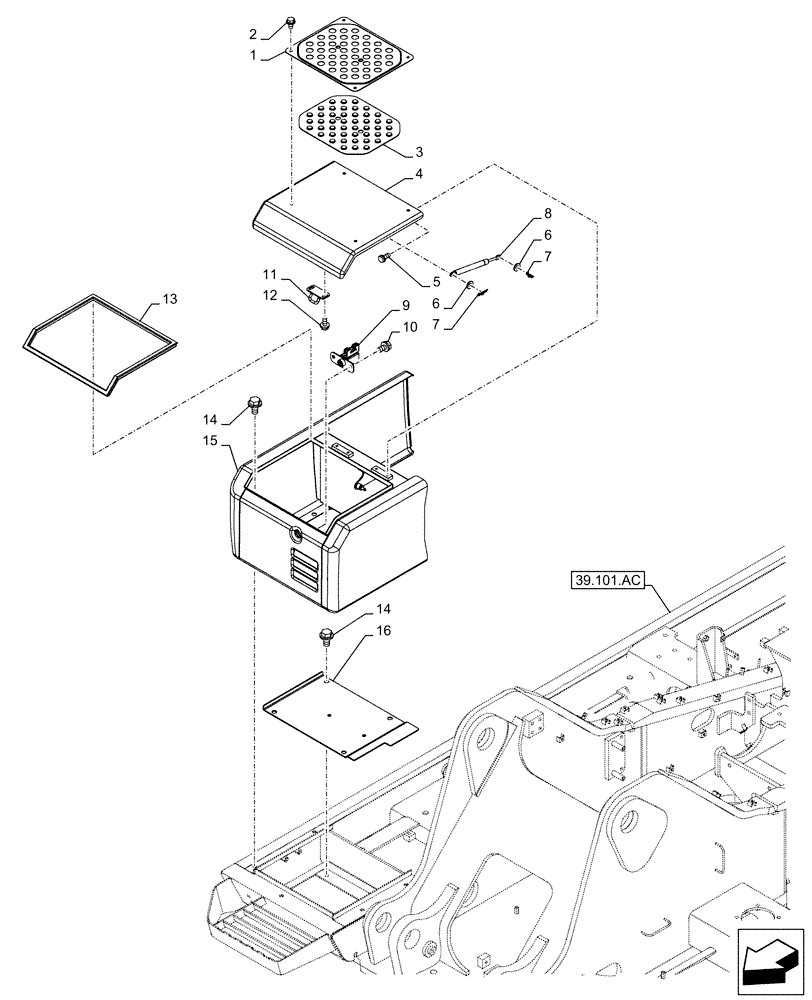

Схема запчастей Case CX210D NLC - (90.105.CF) - STD + VAR - 488031 - HOOD, FUEL TRANSFER PUMP (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.101.ac
6
5
1
11
13
7
2
14
12
4
8
9
10
3
16
14
15
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN13510B1

COVER

1шт.

2

KHN13540

BOLT,Spcl

4шт.

3

KHN10940

RUBBER PAD

1шт.

4

KNN15940G1

COVER

1шт.

5

KAN2771

BOLT,Spcl

4шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

153077A1

COTTER PIN

2шт.

8

KHN38920

DAMPER

1шт.

9

KHN35780

LOCK

1шт.

10

166351A1

BOLT,Sems, M10 x 20mm

2шт.

11

KHN12740

SUPPORT

1шт.

12

166350A1

BOLT

2шт.

13

KHN41830

TRIM

1шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

9шт.

15

KNN15930G1

COVER

1шт.

16

KRN29430G1

COVER

1шт.
