(90.105.BV[12]) - VAR - 488031 - TOP COVER, PLATE, PRE-CLEANER, CYCLONE TYPE

Запчасти Case CX210D NLC (90.105.BV[12]) - VAR - 488031 - TOP COVER, PLATE, PRE-CLEANER, CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS

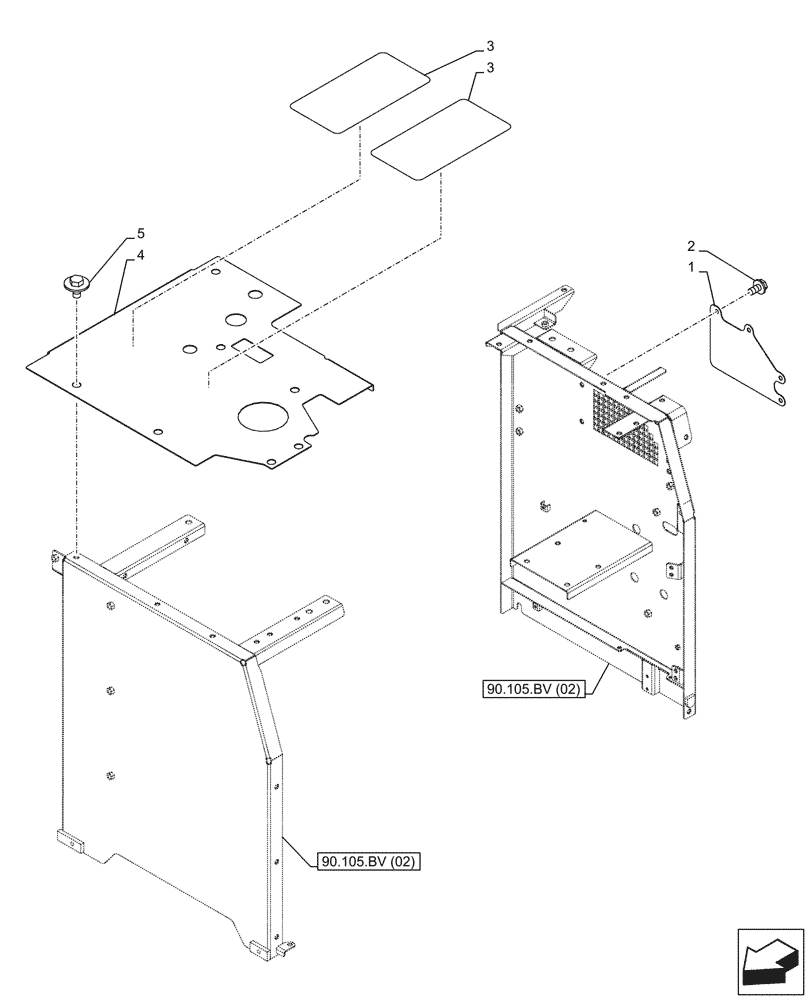

Схема запчастей Case CX210D NLC - (90.105.BV[12]) - VAR - 488031 - TOP COVER, PLATE, PRE-CLEANER, CYCLONE TYPE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.bv (02)
3
2
5
1
3
4
90.105.bv (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN22090

COVER

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

3

KHP27360

ANTI-SKID STRIP

200mm x 380mm

1шт.

4

KBN22080

COVER

LH

1шт.

5

KHN12020

BOLT,Spcl

M12 x 25mm

6шт.

Выбрано товаров: 5
