(90.105.BV[11]) - TOP COVER, PLATE, STANDARD

Запчасти Case CX210D NLC (90.105.BV[11]) - TOP COVER, PLATE, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

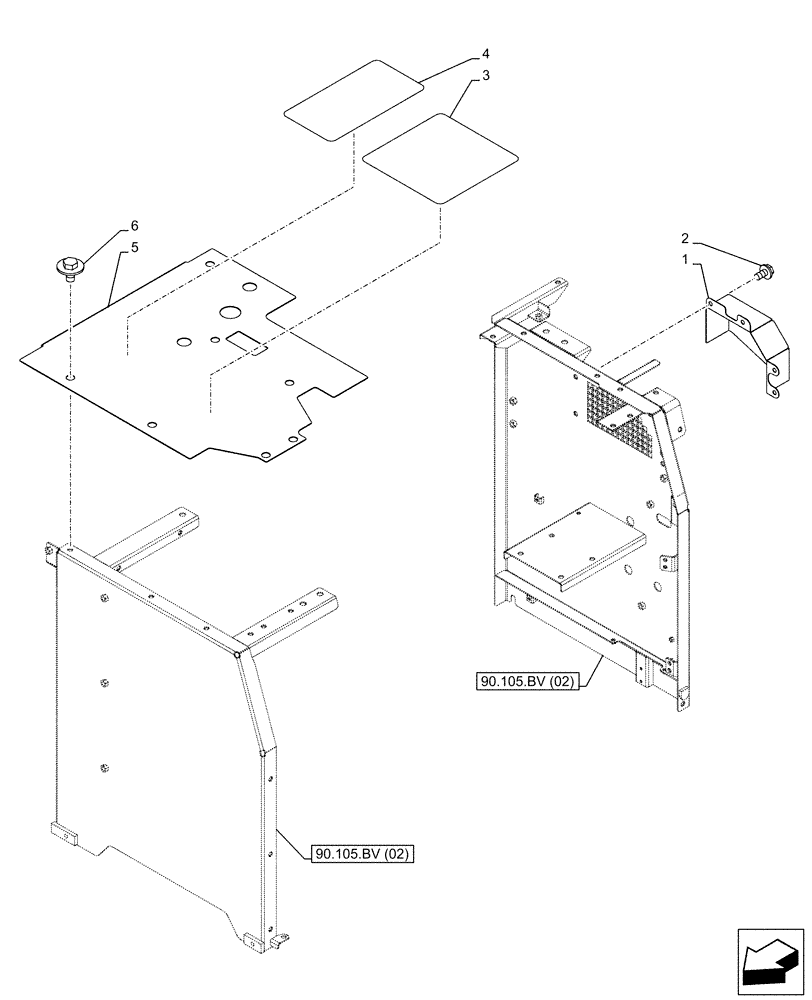

Схема запчастей Case CX210D NLC - (90.105.BV[11]) - TOP COVER, PLATE, STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.105.bv (02)
2
6
4
1
5
3
90.105.bv (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19801

COVER

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

3

KHP1259

ANTI-SKID STRIP

320mm x 320mm

1шт.

4

KHP27360

ANTI-SKID STRIP

200mm x 380mm

1шт.

5

KBN19610

COVER

LH

1шт.

6

KHN12020

BOLT,Spcl

M12 x 25mm

6шт.
