(90.105.BV[10]) - STD + VAR - 488031 - TOP COVER, PLATE

Запчасти Case CX210D NLC (90.105.BV[10]) - STD + VAR - 488031 - TOP COVER, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

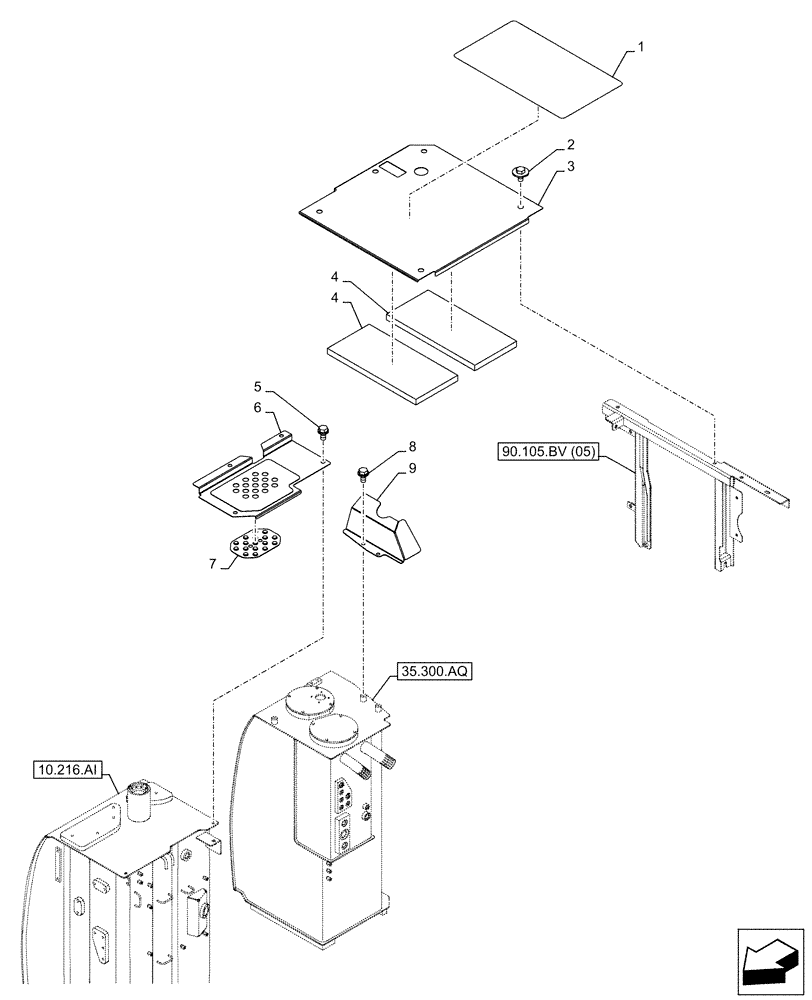

Схема запчастей Case CX210D NLC - (90.105.BV[10]) - STD + VAR - 488031 - TOP COVER, PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS
10.216.ai
3
5
7
4
8
4
1
9
6
2
35.300.aq
90.105.bv (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHP27350

ANTI-SKID STRIP

380mm x 680mm

1шт.

2

KHN12020

BOLT,Spcl

M12 x 25mm

6шт.

3

KRN29250

COVER

1шт.

4

KBN16750

INSULATION

2шт.

5

105R012Y025R

BOLT

4шт.

6

KRN29270

COVER

1шт.

7

KHN32810

PLATE

1шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

9

KBN20000

COVER

1шт.
