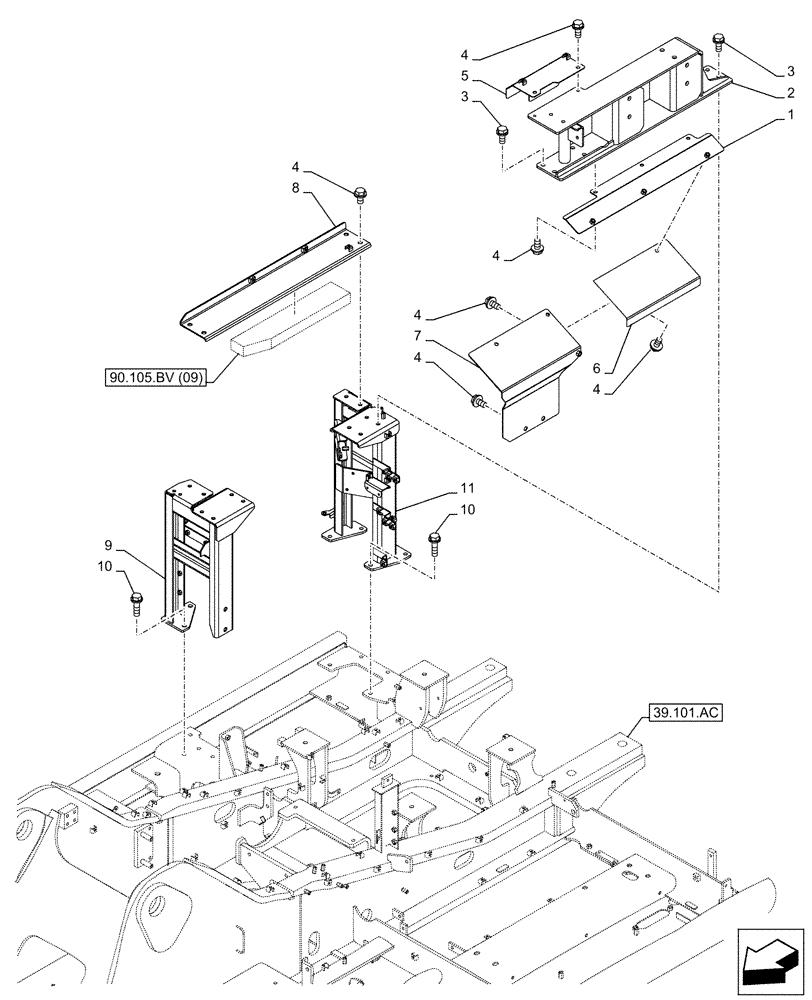

Запчасти Case CX210D NLC (90.105.BV[07]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KRN29180

COVER

1шт.

2

KRN29160

FRAME

, Serial Range: -C0485

1шт.

2

KRN29161

FRAME

, Start Serial: D0485

1шт.

3

166352A1

BOLT

M12 x 30mm

8шт.

4

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

15шт.

5

KRN29170

COVER

, Serial Range: -C0485

1шт.

5

KRN29171

COVER

, Start Serial: D0485

1шт.

6

KBN19870

COVER

1шт.

7

KBN19860

COVER

1шт.

8

KRN29150

COVER

, Serial Range: -C0485

1шт.

8

KRN29151

COVER

, Start Serial: D0485

1шт.

9

KRN29130

FRAME

, Serial Range: -C0485

1шт.

9

KRN29131

FRAME

, Start Serial: D0485

1шт.

10

105R012Y045R

BOLT

M12 x 45mm

9шт.

11

KRN29140

FRAME

, Serial Range: -C0485

1шт.

11

KRN29141

FRAME

, Start Serial: D0485

1шт.
