Запчасти Case CX210D NLC (90.105.BV[05]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

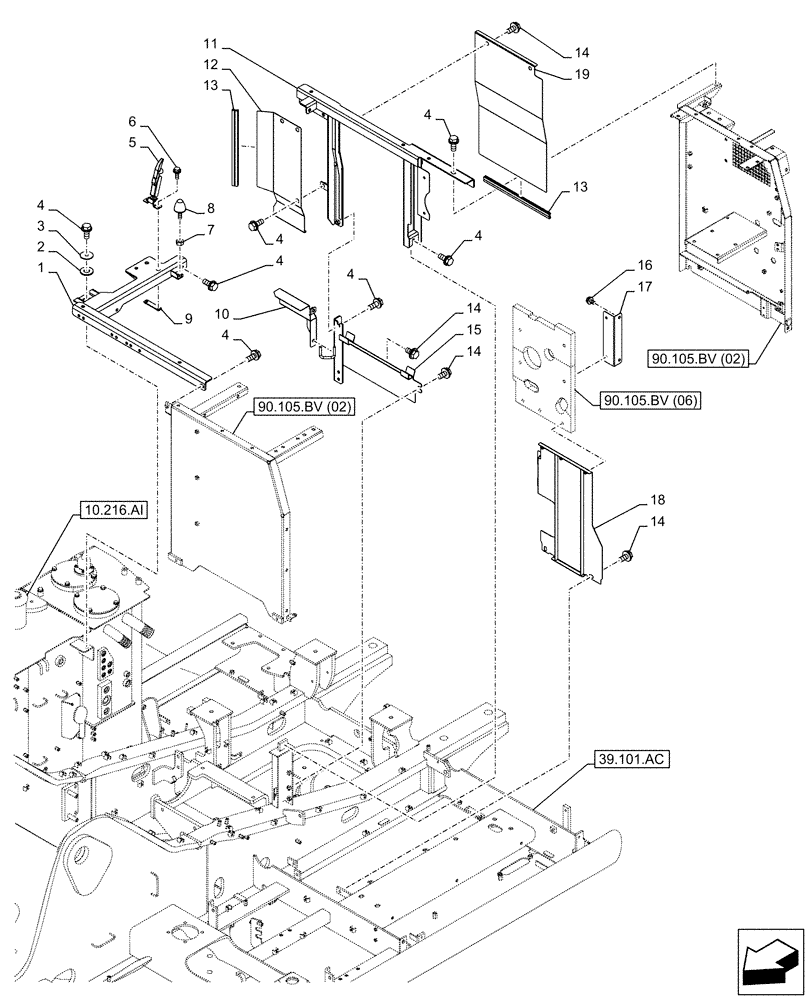

Схема запчастей Case CX210D NLC - (90.105.BV[05]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
10.216.ai
5
13
4
18
13
14
8
9
10
4
4
7
14
4
16
4
4
15
14
19
17
4
2
11
14
1
6
12
3
90.105.bv (06)
39.101.ac
90.105.bv (02)
90.105.bv (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRN29110

FRAME

1шт.

2

KHN39780

WASHER

1шт.

3

KHN39790

WASHER

1шт.

4

166352A1

BOLT

M12 x 30mm

1шт.

(Q.ty 9) for PN KBN19520; (Q.ty 12) for PN KBN25020

1шт.

5

152423A1

LATCH

1шт.

6

167182A1

BOLT,Sems, M8 x 25mm

2шт.

7

KBH0446

NUT

M10 x 1.25

1шт.

8

151108A1

STOP

1шт.

9

KHN24200

PLATE

1шт.

10

KBN19840

COVER

1шт.

11

KRN29120

FRAME

1шт.

12

KBN19530

COVER

1шт.

13

HKH0048

SEAL

L=425mm

2шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

11шт.

(Q.ty 11) for PN KBN19520; (Q.ty 8) for PN KBN25020

1шт.

15

KBN19520

COVER

, Serial Range: -C0478

1шт.

15

KBN25020

COVER

, Start Serial: D0478

1шт.

16

166345A1

BOLT

M8 x 16mm

2шт.

17

KBN20050

BRACKET

1шт.

18

KBN25010

COVER

1шт.

19

KBN16510

COVER

1шт.
