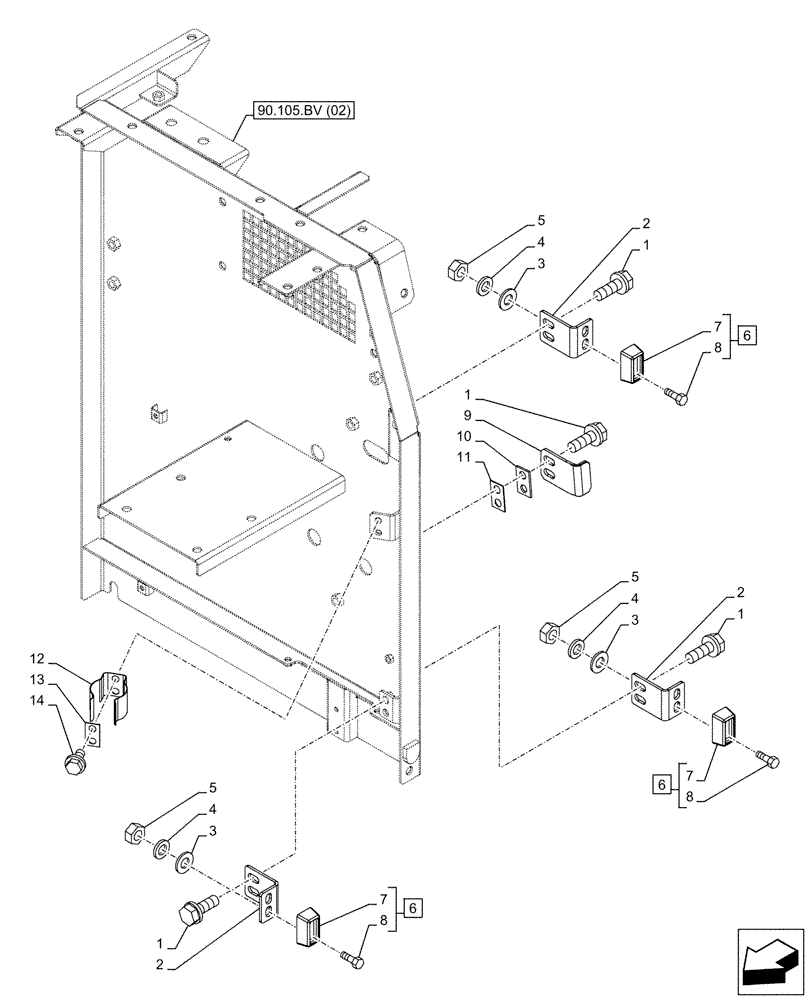

Запчасти Case CX210D NLC (90.105.BV[03]) - STD + VAR - 488031 - HOUSING & COVERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

166347A1

BOLT,Sems, M10 x 30mm

8шт.

2

KHN12660

SUPPORT

3шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

892-11010

LOCK WASHER,M10

6шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

6

KRN2098

STOP

ASSY, Incl 7, 8

3шт.

7

NSS

NOT SOLD SEPARAT

Stopper, Incl in 6

3шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

9

KHN41780

BRACKET

1шт.

10

152719A1

SHIM

1шт.

11

158749A1

SHIM

1шт.

12

152772A1

HOLDER

1шт.

13

KHN3548

PLATE

1шт.

14

166350A1

BOLT

2шт.
