(90.100.AU[01]) - STD + VAR - 488031 - ENGINE HOOD

Запчасти Case CX210D NLC (90.100.AU[01]) - STD + VAR - 488031 - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

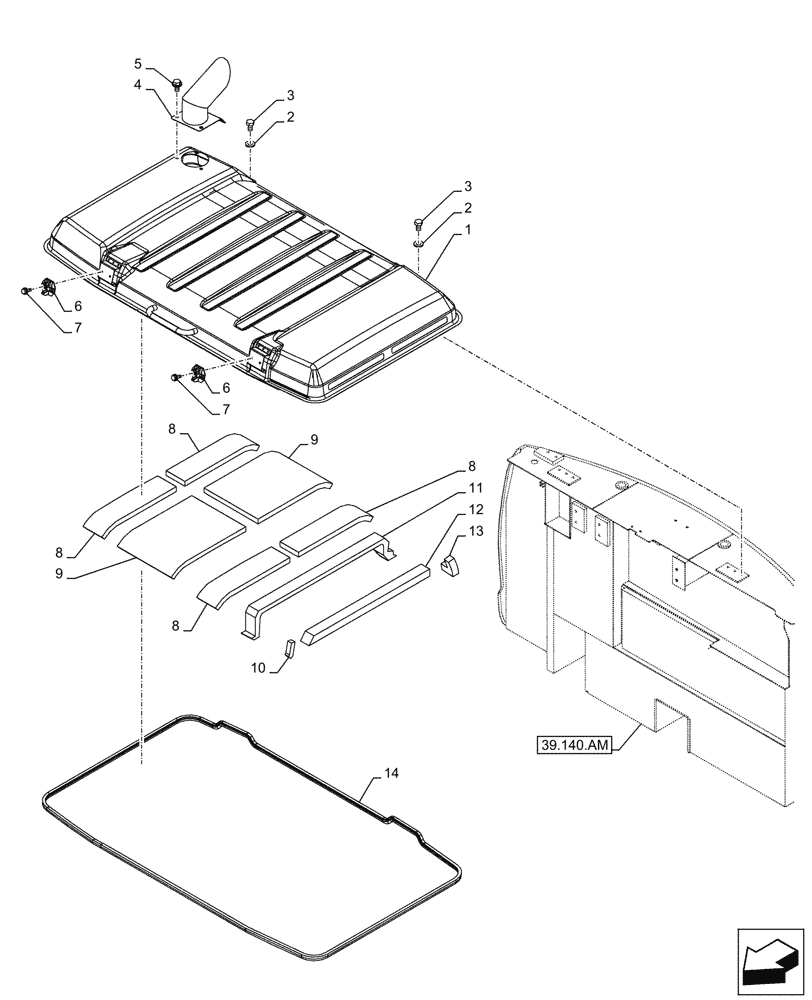

Схема запчастей Case CX210D NLC - (90.100.AU[01]) - STD + VAR - 488031 - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
39.140.am
5
8
4
13
9
8
6
10
3
7
3
1
6
8
7
8
9
14
12
2
11
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBN19770G1

ENGINE HOOD

1шт.

2

150811A1

WASHER

6шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

6шт.

4

KBN19510

EXHAUST SYSTEM PIPE

1шт.

5

KHN39330

BOLT

M12 x 25mm, Serial Range: -C0475

4шт.

5

KHN39331

BOLT

M12 x 25mm, Start Serial: D0475

4шт.

6

150785A1

STOP LOCK

2шт.

7

167182A1

BOLT,Sems, M8 x 25mm

4шт.

8

KBN19460

INSULATION

4шт.

9

KBN19480

INSULATION

2шт.

10

KRH15730

INSULATION

1шт.

11

KBN17030

SEAL

1шт.

12

KBN20070

SEAL

1шт.

13

KBN19470

INSULATION

1шт.

14

KHN35810

TRIM

1шт.
