(55.988.AN) - DEF/ADBLUE™ TANK, LEVEL, SENSOR

Запчасти Case CX210D NLC (55.988.AN) - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS

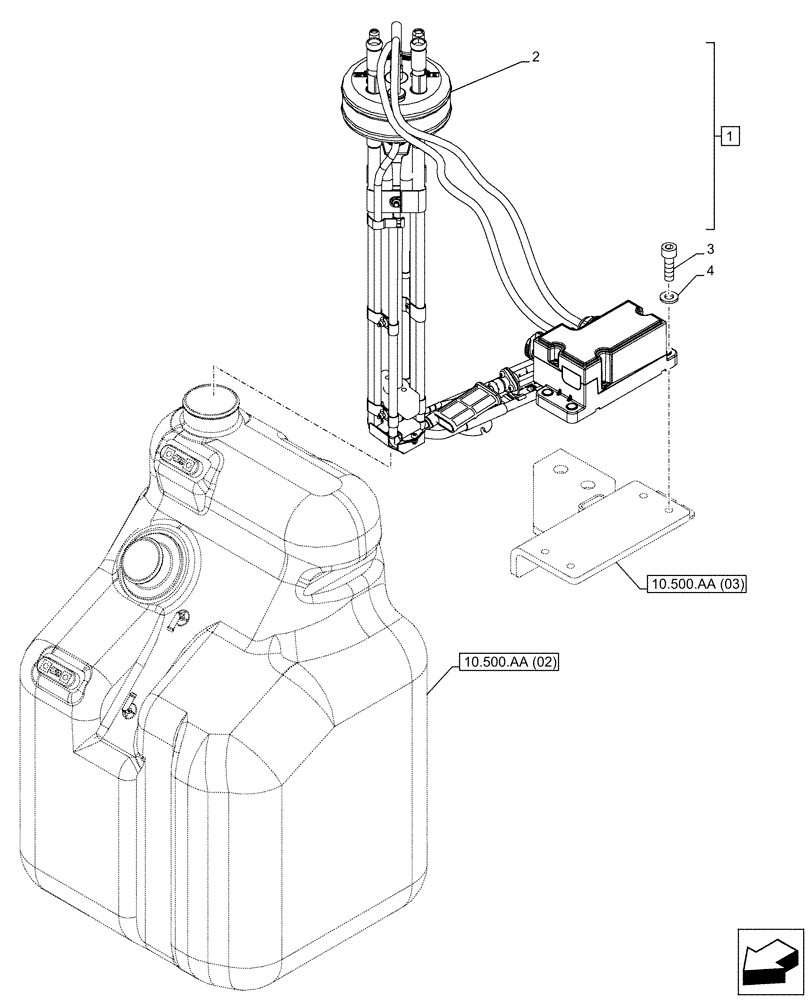

Схема запчастей Case CX210D NLC - (55.988.AN) - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS
10.500.aa (02)
3
1
4
2
10.500.aa (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRH19350

TANK

ASSY, Incl 2 - 4

1шт.

See also Figure 10.500.AA (01), 10.500.AA (02), 10.500.AA (03)

1шт.

2

KLH12940

SENSOR

Urea

1шт.

3

108R006Y020R

BOLT

M6 x 20mm

4шт.

4

183-106VR

SPRING WASHER

M6

4шт.
