(55.950.AA) - VAR - 461869, 461870 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D NLC (55.950.AA) - VAR - 461869, 461870 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

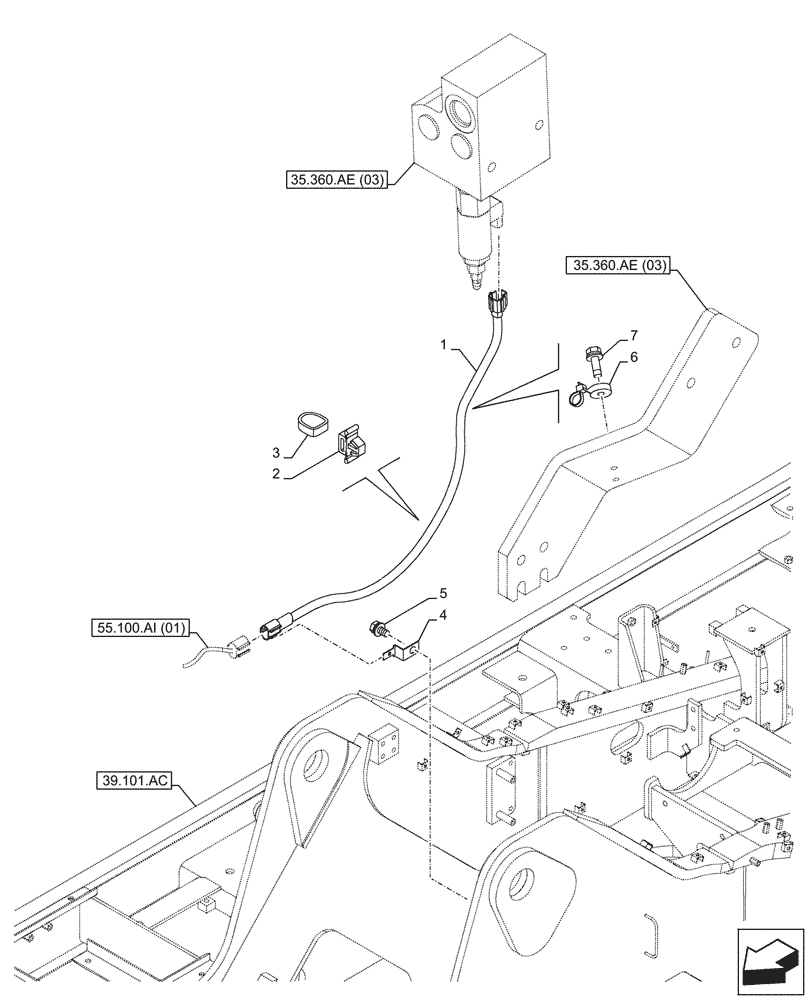

Схема запчастей Case CX210D NLC - (55.950.AA) - VAR - 461869, 461870 - SELECTOR VALVE, HARNESS, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
55.100.ai (01)
7
2
6
5
3
4
1
35.360.ae (03)
35.360.ae (03)
39.101.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR25520

WIRE HARNESS

1шт.

2

KHR10220

MOUNTING CLIP

2шт.

3

150496A1

MOUNTING CLIP

250mm

2шт.

4

158962A1

CLIP

1шт.

5

167518A1

BOLT

1шт.

6

KHR2584

CLAMP

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

Выбрано товаров: 7
