(55.425.AT[02]) - VAR - 461865, 461867 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D NLC (55.425.AT[02]) - VAR - 461865, 461867 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

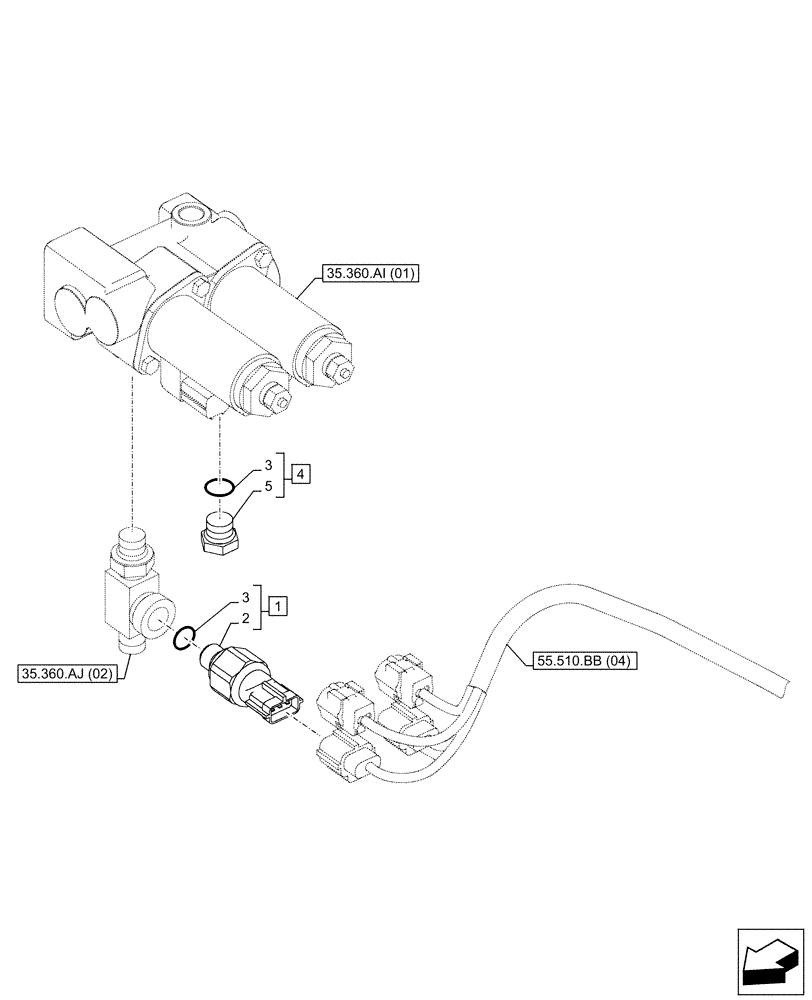

Схема запчастей Case CX210D NLC - (55.425.AT[02]) - VAR - 461865, 461867 - HAMMER CIRCUIT, PRESSURE SENSOR, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
35.360.ai (01)
1
5
4
3
2
3
55.510.bb (04)
35.360.aj (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

ASSY Pressure Sensor 5.0 MPa, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Pressure Sensor 5.0 Mpa, Incl in 1

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

159002A1

PLUG

ASSY, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.
