(55.100.AI[01]) - MAIN, WIRE HARNESS

Запчасти Case CX210D NLC (55.100.AI[01]) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

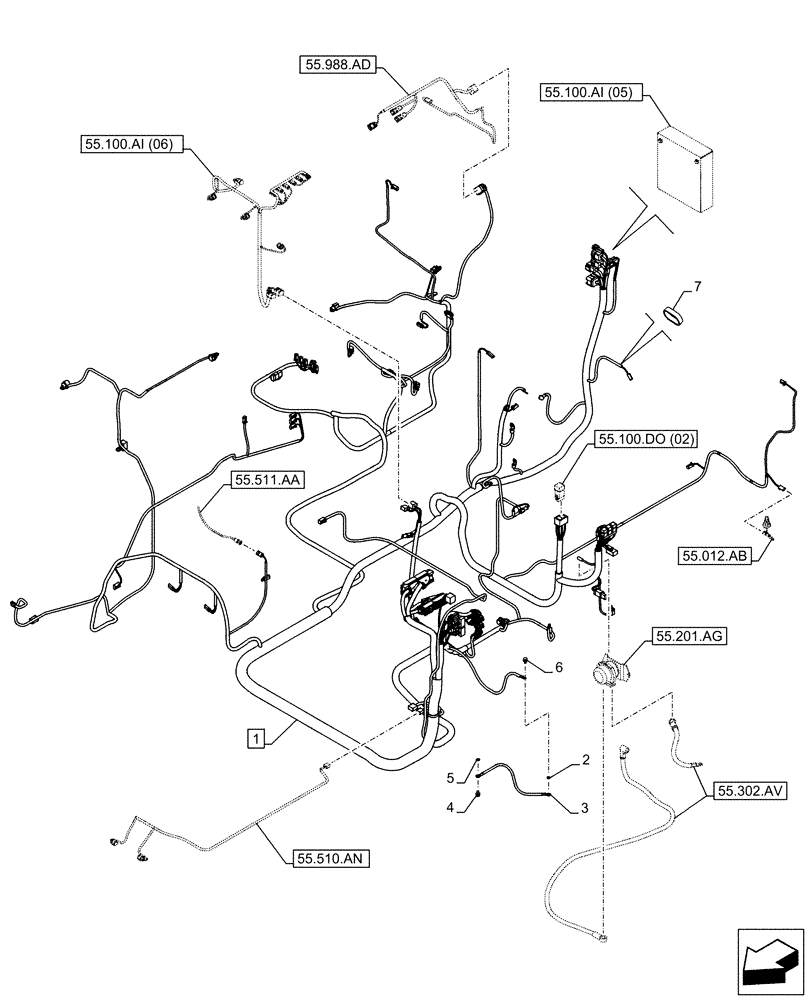

Схема запчастей Case CX210D NLC - (55.100.AI[01]) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.988.ad
1
4
2
7
5
6
3
55.100.ai (06)
55.510.an
55.100.ai (05)
55.100.do (02)
55.201.ag
55.012.ab
55.511.aa
55.302.av
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRR22550

WIRE HARNESS

ASSY, Serial Range: -C0517

1шт.

See also Figure 55.100.DO (02)

1шт.

1

KRR22551

WIRE HARNESS

ASSY, Start Serial: D0517

1шт.

See also Figure 55.100.DO (02)

1шт.

2

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

3

KHR28730

GROUND CABLE

1шт.

4

167518A1

BOLT

1шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

6

KHR2309

BOLT,Spcl

M8 x 30mm

1шт.

7

150496A1

MOUNTING CLIP

1шт.

Выбрано товаров: 10
