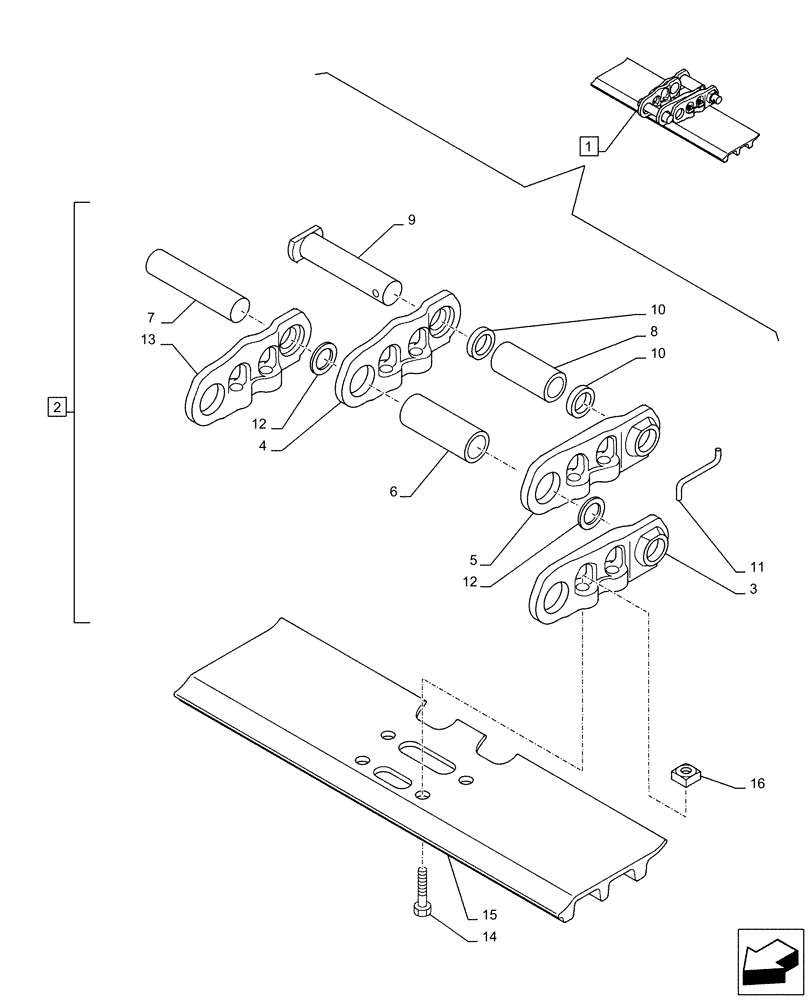

Запчасти Case CX210D NLC (48.100.AD[04]) - VAR - 956001 - TRACK CHAIN, COMPONENTS (L=600MM) (48) - TRACKS & TRACK SUSPENSION

1

KRA1797

SHOE

ASSY, Incl 2 - 16, Serial Range: -C0425

2шт.

1

KRA11370

TRACK ASSY

ASSY, Incl 2 - 16, Start Serial: D0425

2шт.

2

KRA1805

CHAIN (CE)

ASSY, Incl 3 - 13, Serial Range: -C0425

1шт.

2

KRA18630

TRACK LINK

ASSY, Incl 3 - 13, Start Serial: D0425

1шт.

3

KRA1808

LINK

48шт.

4

KRA1809

LINK

1шт.

5

KRA1810

LINK CHAIN

1шт.

6

KRA1811

BUSHING

48шт.

7

KRA1567

PIN

, Serial Range: -C0425

48шт.

7

KRA11110

PIN

, Start Serial: D0425

48шт.

8

KRA1569

BUSHING

1шт.

9

159676A1

HEADED PIN,36.3mm OD x 208mm L

, Serial Range: -C0425

1шт.

9

KRA18900

HEADED PIN

, Start Serial: D0425

1шт.

10

159673A1

SPACER, RING

2шт.

11

159677A1

COTTER PIN,8mm OD

2шт.

12

KRA1814

DUST CAP

96шт.

13

KRA1807

LINK

48шт.

14

159668A1

BOLT,Hex, M20 x 1.5 x 53mm

196шт.

15

165934A1

TRACK SHOE

49шт.

16

159669A1

NUT

196шт.
