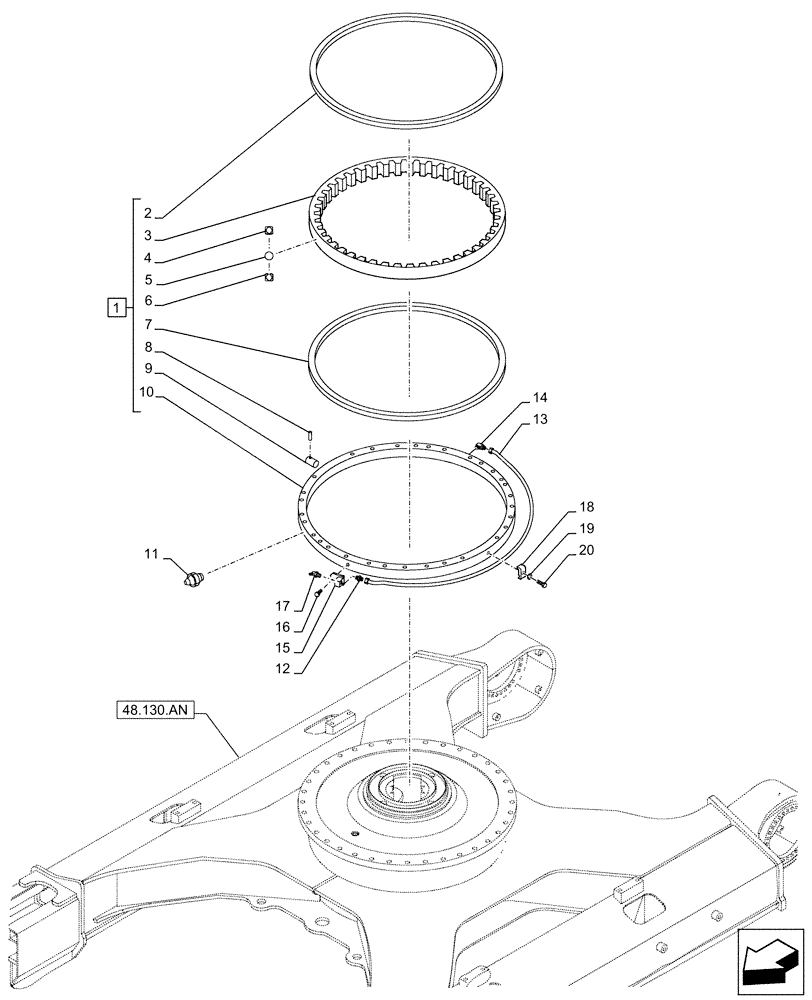

Запчасти Case CX210D NLC (39.103.AD) - SLEWING RING (39) - FRAMES AND BALLASTING

1

KBB18580

SLEWING RING

ASSY, Incl 2 - 10

1шт.

2

KBB0645

SEALING RING

1шт.

3

NSS

NOT SOLD SEPARAT

Swing bearing, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

96шт.

5

NSS

NOT SOLD SEPARAT

Ball Bearing, Incl in 1

102шт.

6

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

6шт.

7

KBB0646

SEALING RING

1шт.

8

KBB0763

DOWEL

1шт.

9

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Swing bearing, Incl in 1

1шт.

11

153630A1

LUBE NIPPLE

1шт.

12

152599A1

MULTIPOLE CONNECTOR

1шт.

13

KBB10490

HYD TUBE,6 mm ID x 8 mm OD

1шт.

14

152627A1

ELBOW

1шт.

15

KRB10730

MANIFOLD VALVE

1шт.

16

166345A1

BOLT

M8 x 16mm

1шт.

17

153631A1

LUBE NIPPLE,1/8"-27 NPT

1шт.

18

151504A1

CLAMP

1шт.

19

153081A1

WASHER

M8

1шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

M8 x 30mm

1шт.
