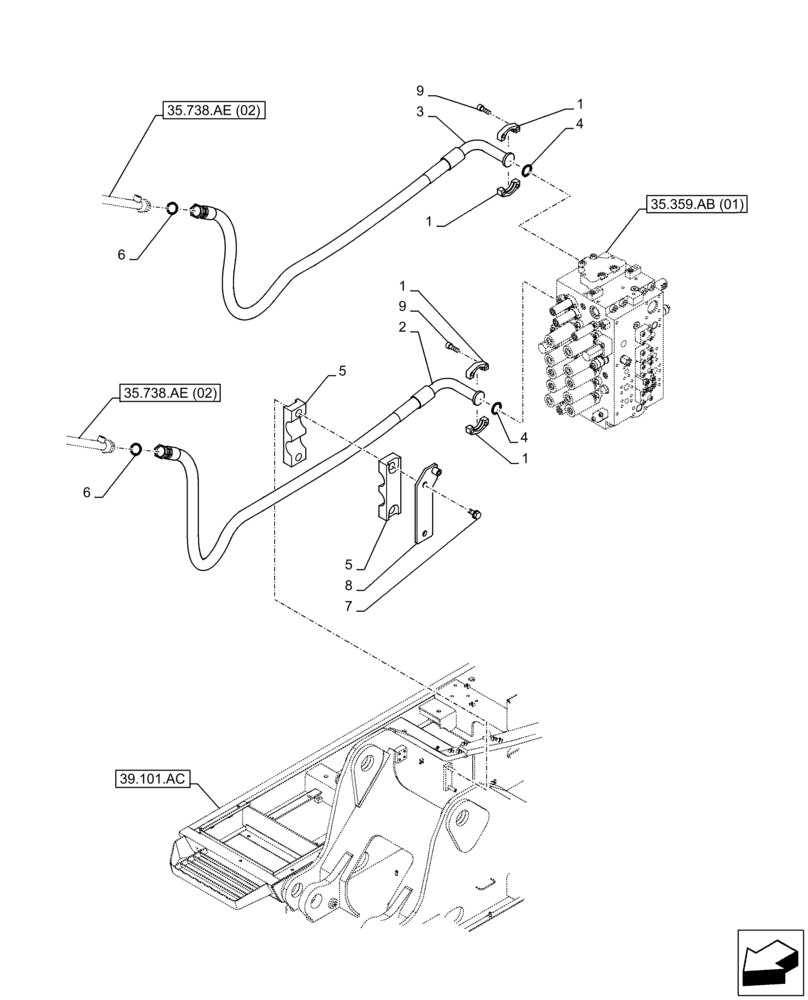

Запчасти Case CX210D NLC (35.738.AE[01]) - BUCKET, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

153459A1

FLANGE

4шт.

2

KRJ29850

HYDRAULIC HOSE

25mm ID x 1730mm

1шт.

3

KRJ29860

HYDRAULIC HOSE

25mm ID x 1700mm

1шт.

4

155211A1

O-RING

2шт.

5

KBJ14410

HOSE CLAMP

2шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

7

166052A1

BOLT

M10 x 25mm

2шт.

8

KRJ37130

PLATE

1шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

8шт.
