(35.737.AY[01]) - VAR - 481064, 461585 - ARM, CYLINDER, SAFETY VALVE

Запчасти Case CX210D NLC (35.737.AY[01]) - VAR - 481064, 461585 - ARM, CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

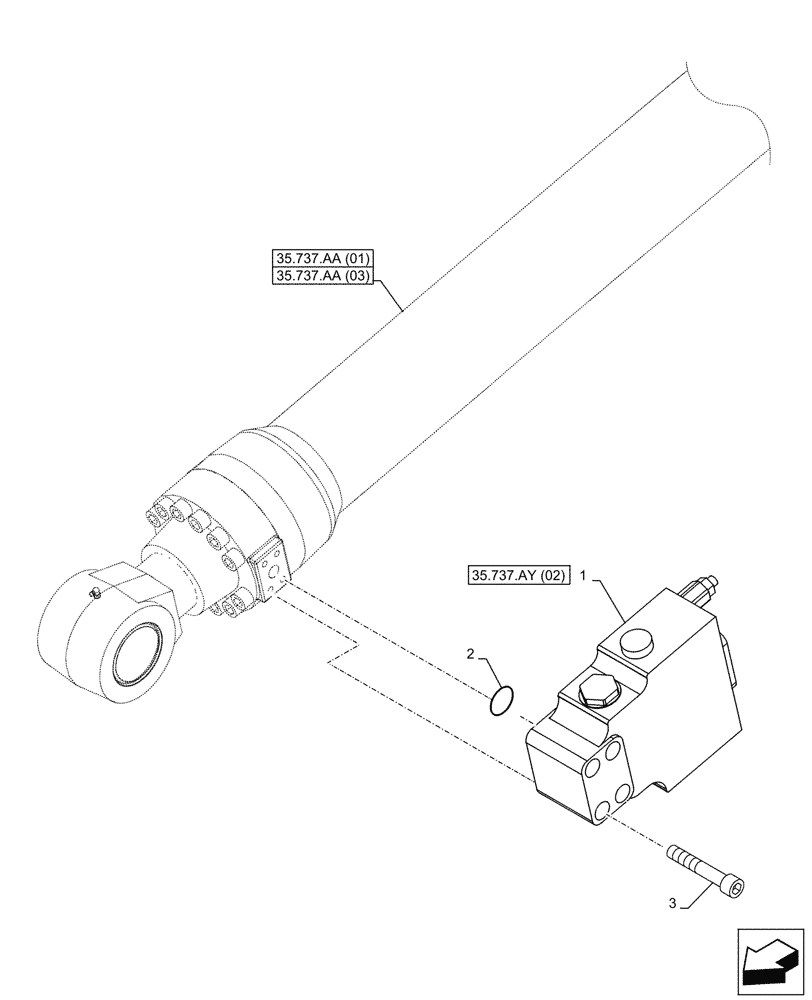

Схема запчастей Case CX210D NLC - (35.737.AY[01]) - VAR - 481064, 461585 - ARM, CYLINDER, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
35.737.ay (02)
2
3
1
35.737.aa (01)
35.737.aa (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KSV17260

SAFETY VALVE

ASSY

1шт.

2

155211A1

O-RING

1шт.

3

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

M12 x 70mm

4шт.

Выбрано товаров: 3
